Install Silent Brick Single Drive / Drive / Drive Pro

Install rack rails

Disassemble rack rails

The rack rails must first be disassembled into two parts. To do this, proceed as follows:

  • ➤ Pull the inner rail out of the outer rail until the release lever (32) is visible.

Fig.: Pulling out inner rack rails

  • ➤ Operate the release lever (32).

  • ➤ Pull the inner rail completely out of the outer rail.

Fig.: Release lever

Mount inner rack rails to the Drive

To mount the inner rack rails to the Drive, proceed as follows:

  • ➤ Position the inner rack rail onto the side housing of the drives so that the screw holes align with the rail.

  • ➤ Secure the rails on both sides with one of the included M4×4 screws to the housing.

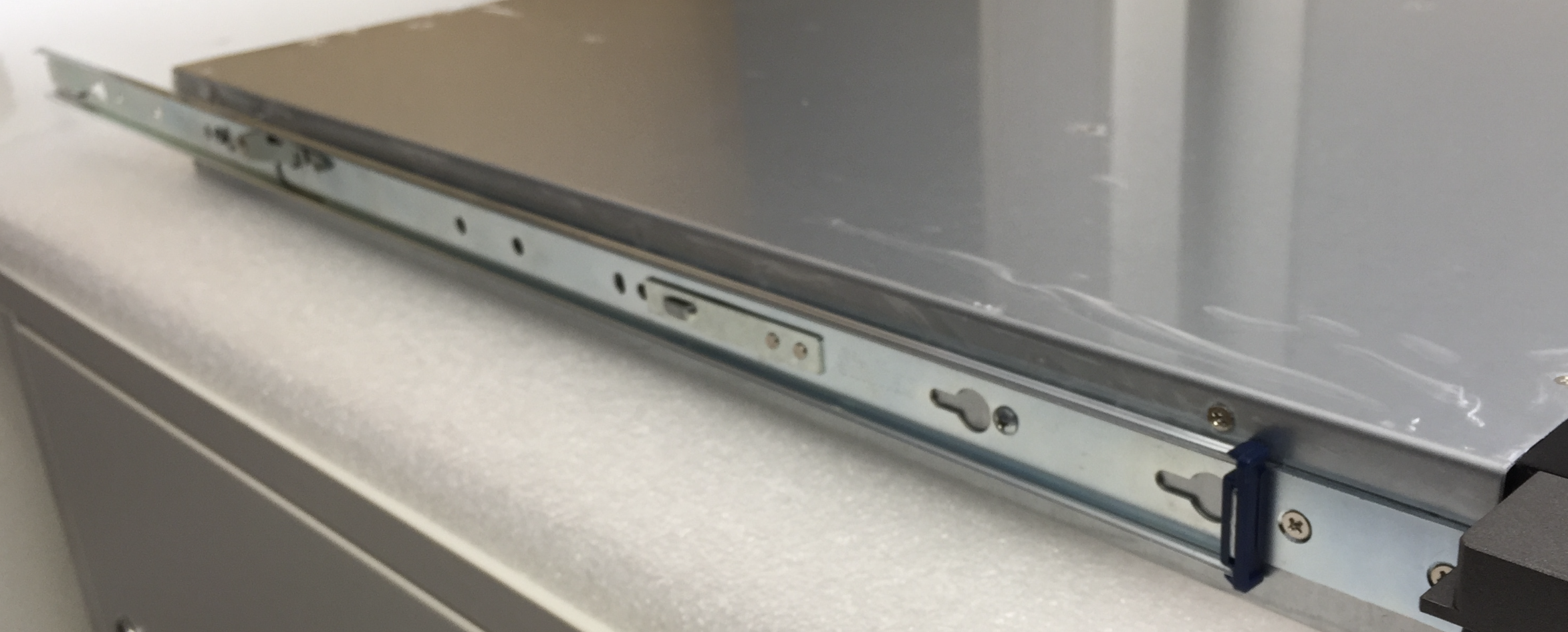

Fig. Screwing in rack rails

Mounting outer rack rails in the rack

  • ➤ To mount the outer rack rails in the rack, proceed as follows:

  • ➤ Slide the safety mechanism (33) of the rail back.

  • ➤ Hook the rail into the rack.

Fig.: Safety mechanism

  • ➤ Release the safety mechanism.

  • ➤ Ensure that the rectangular locking pins are correctly anchored in the rack holes.

Fig.: Locking pin

  • ➤ Screw the rack rail to the front side of the rack with the locking pin.

Fig.: Locking pin

  • ➤ Screw the rack rail to the back side of the rack with the locking screw.

Fig.: Locking screw

Insert controller/shelf into rack

To insert a controller/a shelf into a rack, proceed as follows:

  • ➤ Pull the outer rack rails as far out of the rack as possible.

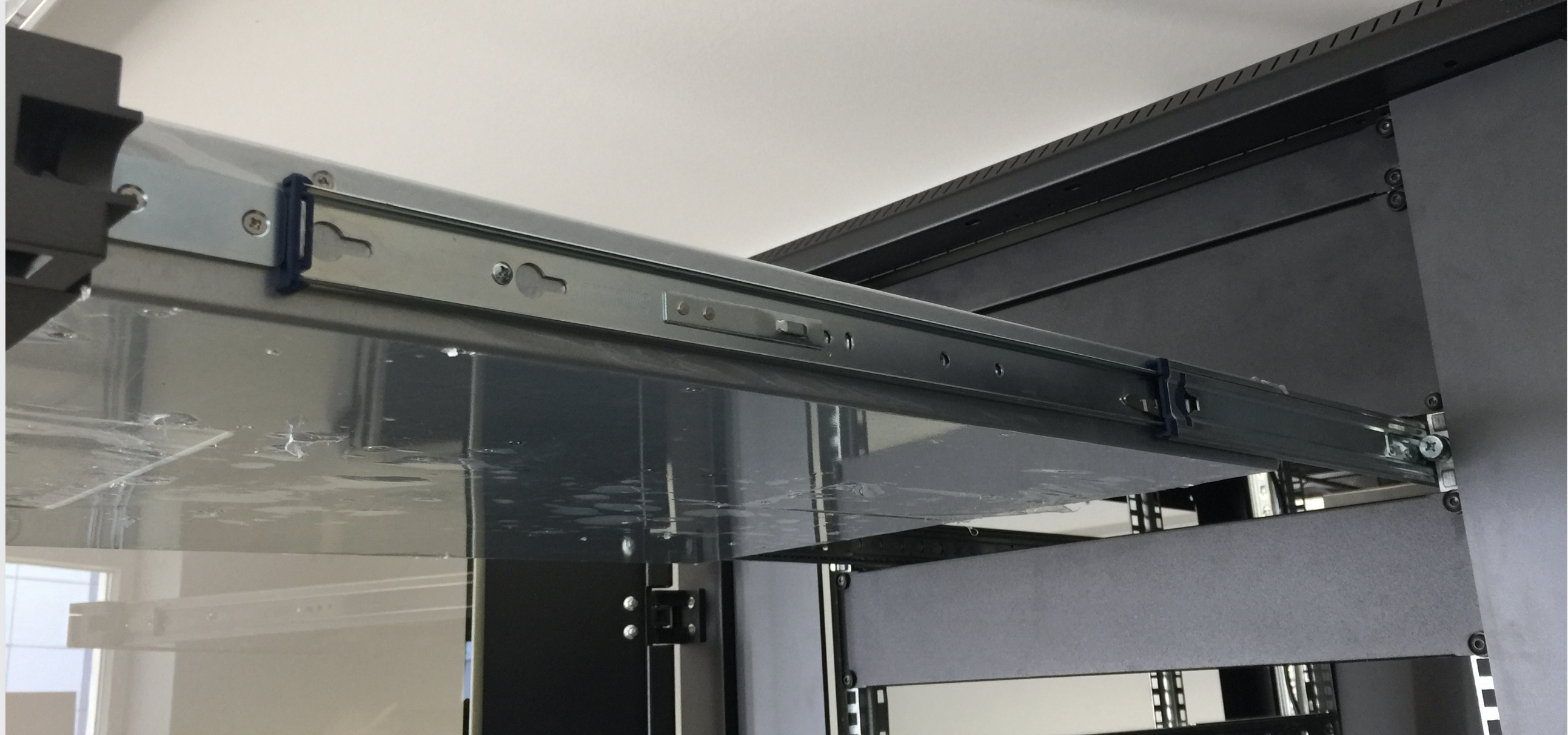

Fig.: Pulling out rack rails

  • ➤ Hang the device in such a way that the inner rack rails slide into the outer rack rails.

  • ➤ Slide the device into the rack until it stops.

Fig.: Inserting the device

  • ➤ Operate the release lever.

Fig. Release lever

  • ➤ Slide the device into the rack until the locking mechanism engages.
