Manage devices
In the 'Resources' section, you can manage the controllers, shelves, and bricks of the Silent Brick Library.
Manage controllers
In the 'Controllers' section, you will find an overview of all controllers and their associated information.
To configure a controller, proceed as follows:
➤ Double-click on a controller.
➤ The 'Edit Controller' window will be displayed.
➤ Enter a description for the controller.
➤ Select a server rack for the controller.
➤ Select a rack position for the controller.
➤ To confirm your entries, click the ‘Save’ button.
➤ To cancel your entries, click the 'Cancel' button.
Manage Shelves
In the 'Shelves' section, you will find an overview of all shelves and the associated information.
To configure a shelf, proceed as follows:
➤ Double-click on a shelf.

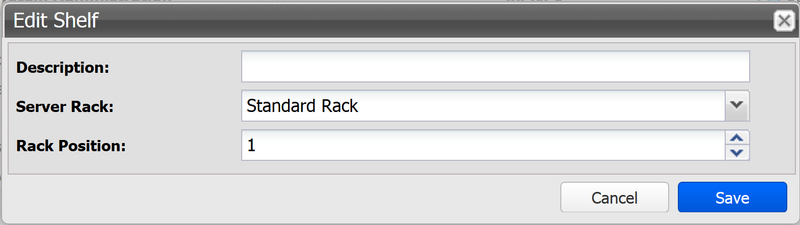

➤ The 'Edit Shelf' window will be displayed.
➤ Enter a description for the shelf.
➤ Select a server rack for the shelf.
➤ Select a rack position for the shelf.
➤ To confirm your entries, click the ‘Save’ button.
➤ To cancel your entries, click the 'Cancel' button.
Manage Bricks
In the 'Bricks' section, you will find an overview of all bricks and the associated information.
To configure a brick, proceed as follows:
➤ Double-click on a brick.

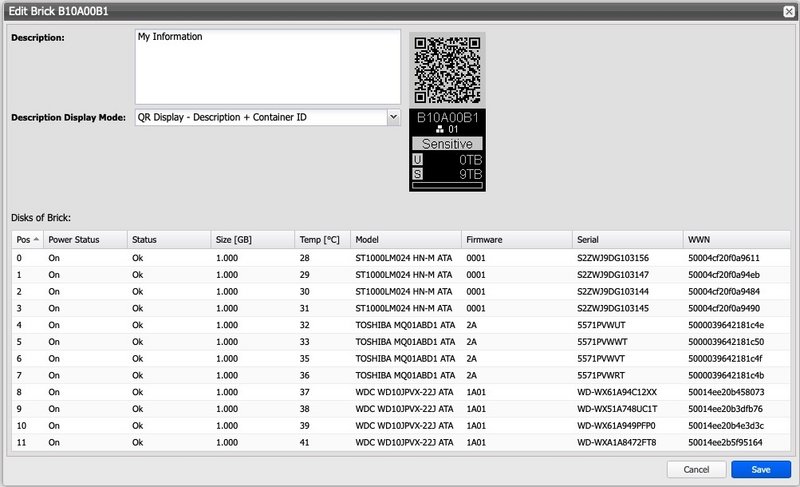

➤ The 'Edit Brick' window will appear.
➤ Enter a description for the brick.
➤ Select a display mode for the display.
➤ "QR Display": A QR code will be displayed, which includes the corresponding fields.
➤ "Text Display": The description of the brick will be displayed as text. You can choose between different orientations.
➤ To confirm your entries, click the ‘Save’ button.
➤ To cancel your entries, click the 'Cancel' button.
To add a brick to a library, proceed as follows:
➤ Click on a brick to select it.
➤ Click on the 'Add to Library/Volume' button.

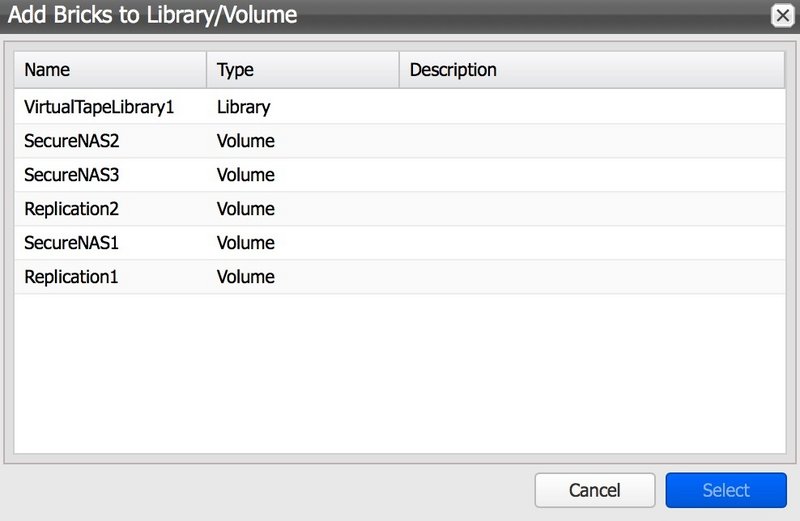

➤ The 'Select Library/Volume' window will appear.
➤ Click on a library to select it.
➤ To confirm your input, click the 'Select' button.
➤ To cancel your input, click the 'Cancel' button.
To remove a Brick from a Library, proceed as follows:
➤ Click on a brick to select it.
➤ Click the 'Remove from Brick' button.
