Install Silent Brick Controller X-Series

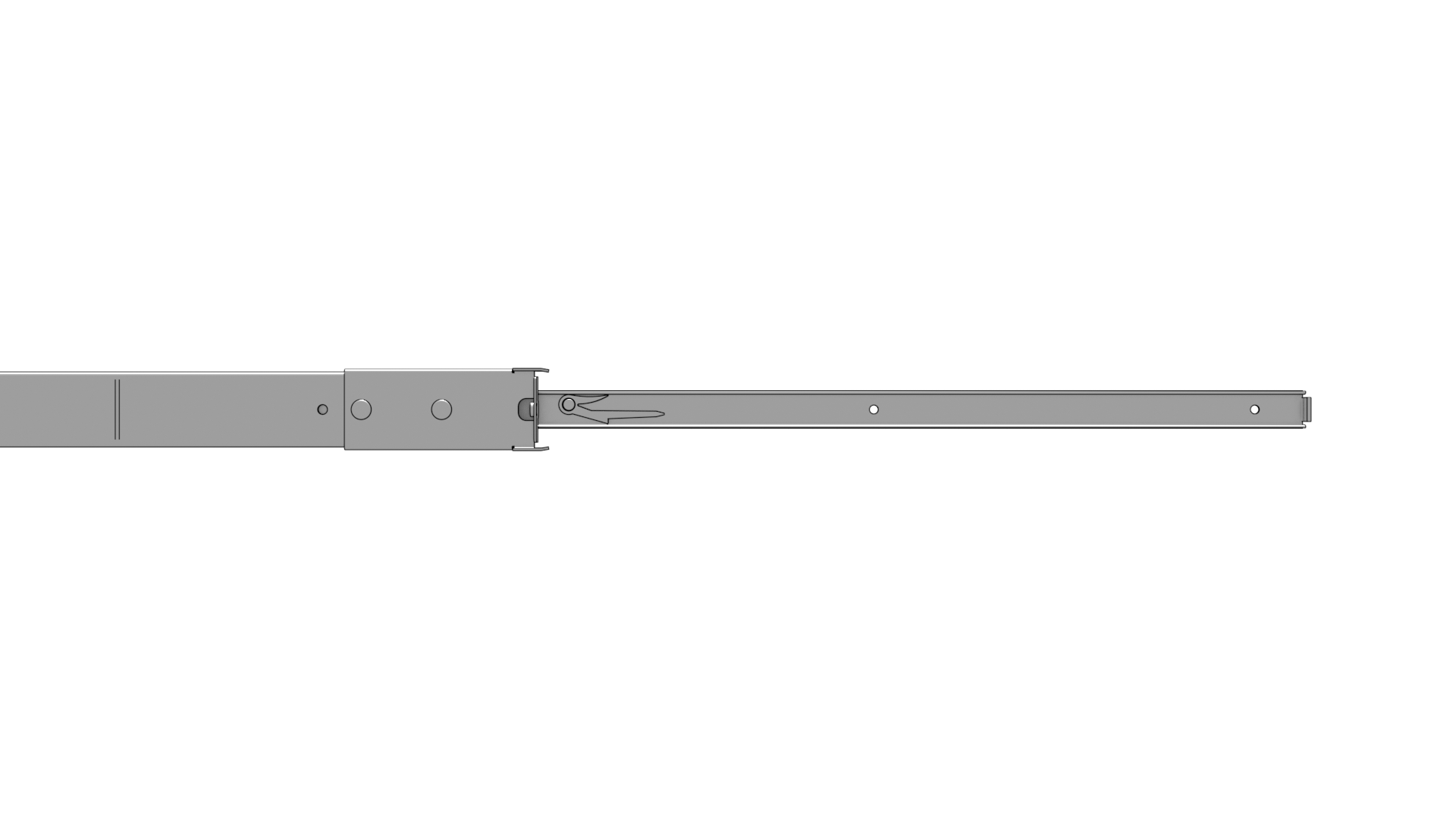

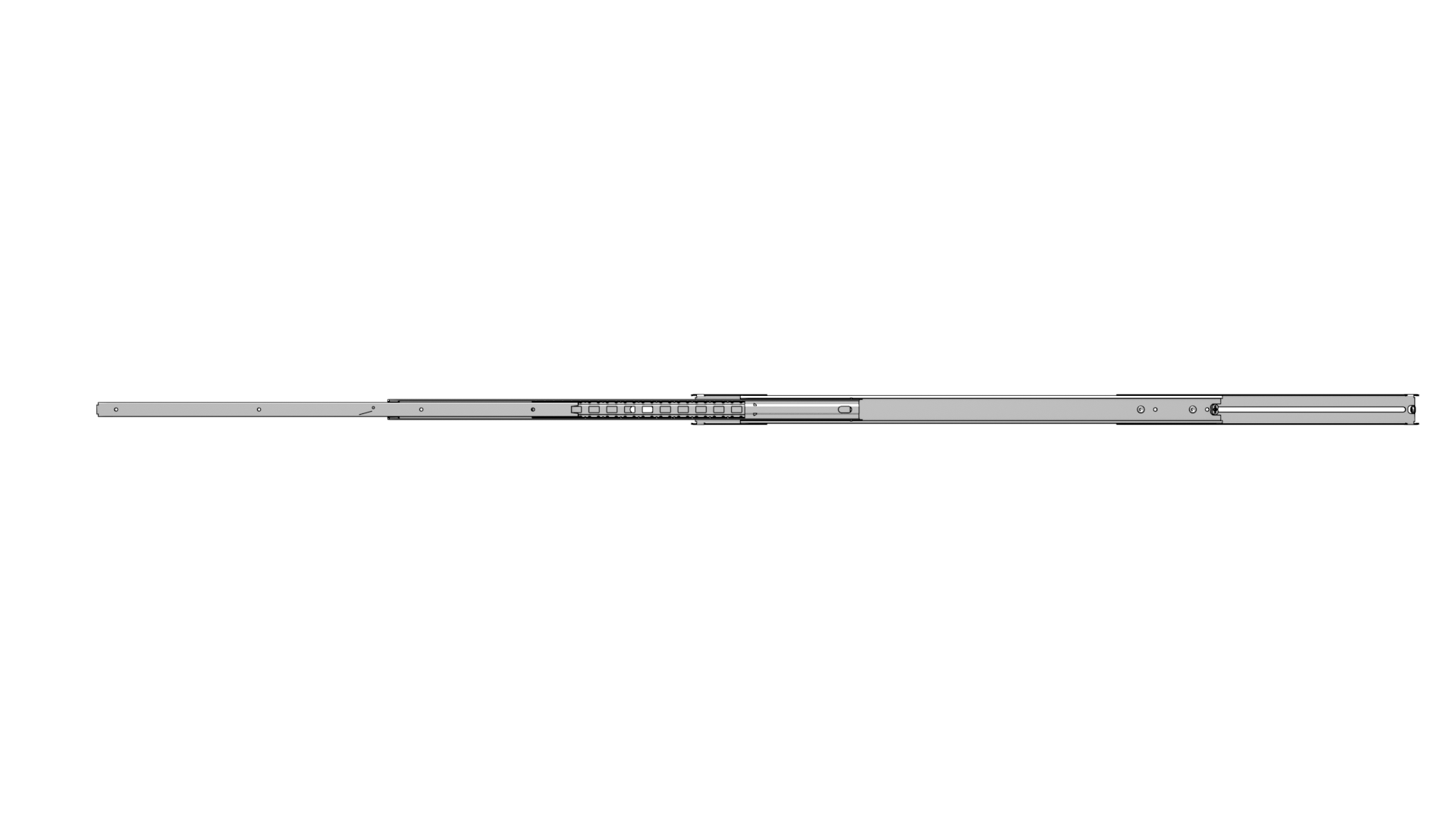

Disassemble rack rail

The rack rails must first be disassembled into two parts. To do this, proceed as follows:

  • ➤ Pull the inner rail out of the outer rail until the release lever is visible.

  • ➤ Operate the release lever to pull the inner rail out of the rail set.

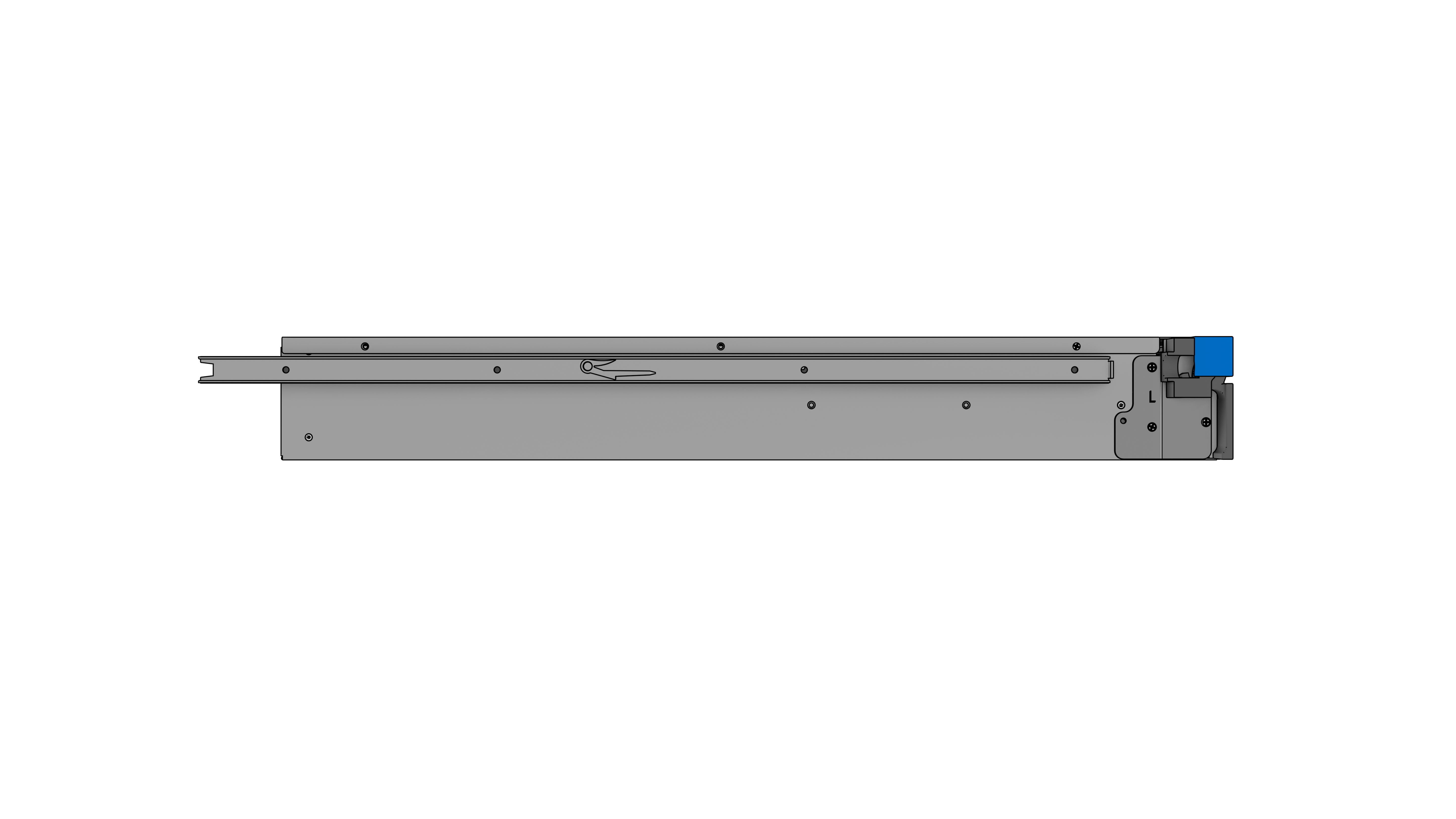

Mount inner rack rail on the controller

  • ➤ Attach the inner rail using the included screws on both sides of the Silent Brick Controller Pro.

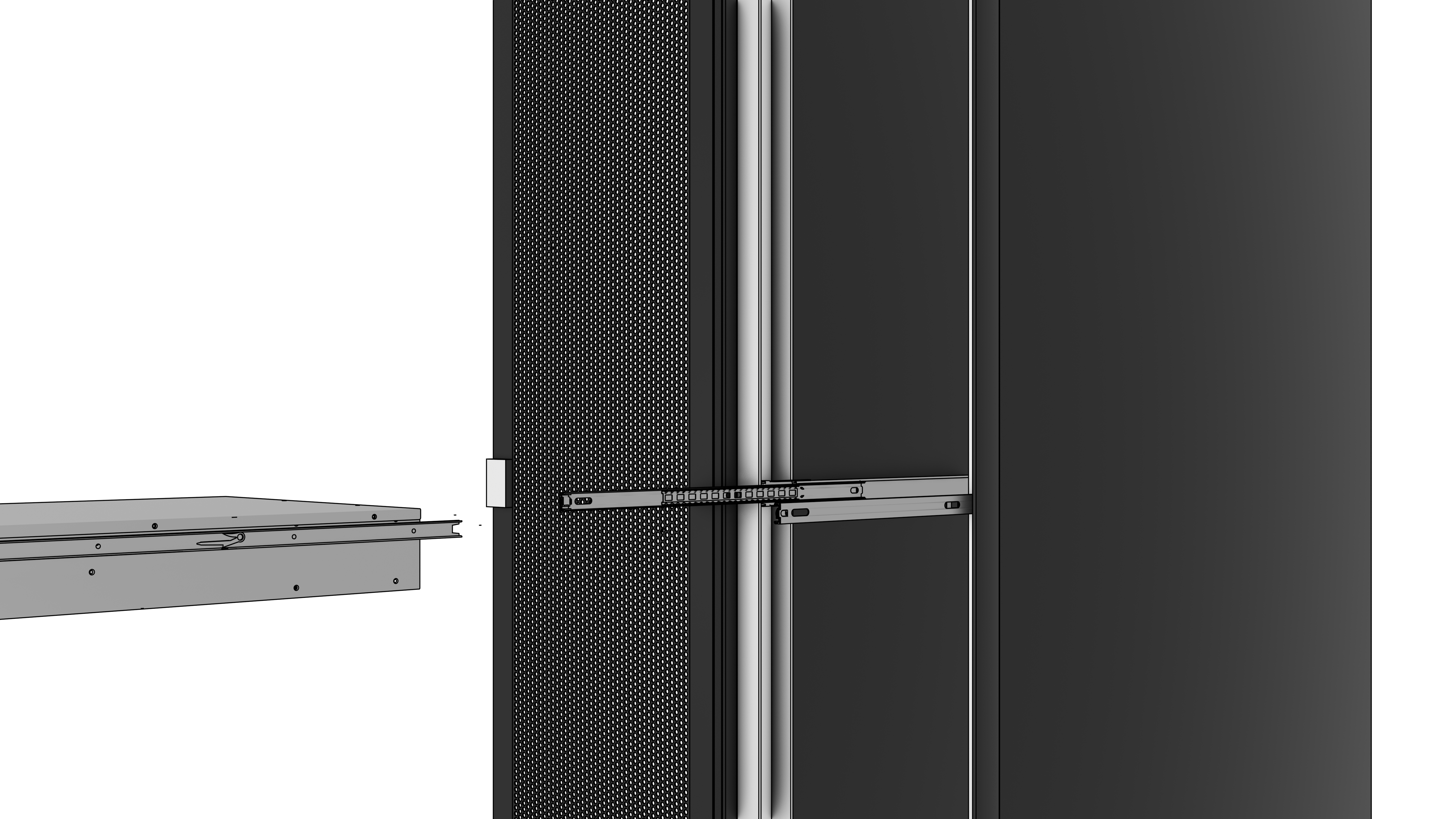

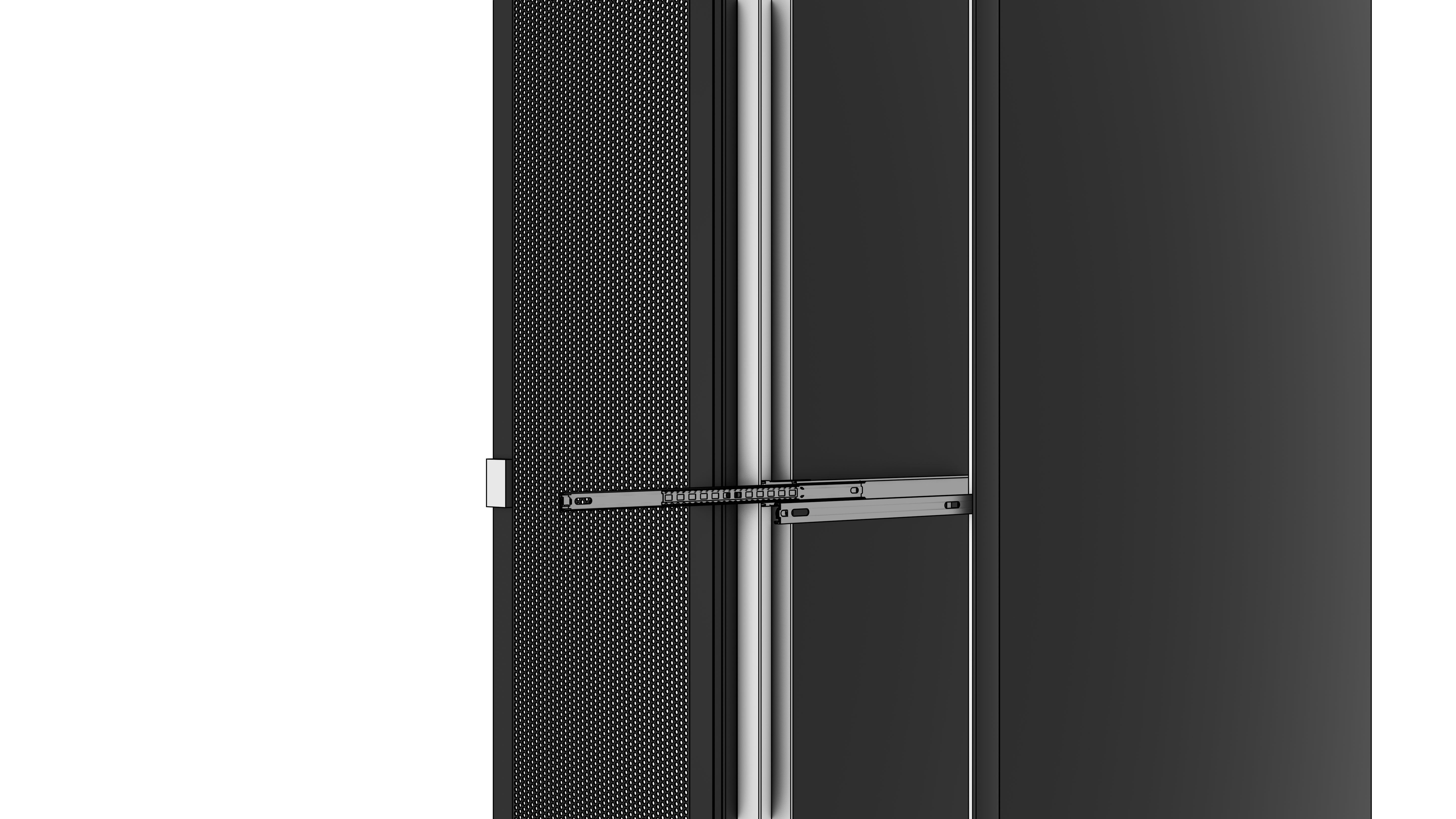

Mount the outer rack rail in the rack

  • ➤ Use the included screws to mount the outer rails in the rack.

  • ➤ Note that the locking bolts at the front of the rack must be used. These will later secure the Silent Brick Controller Pro in the rack.

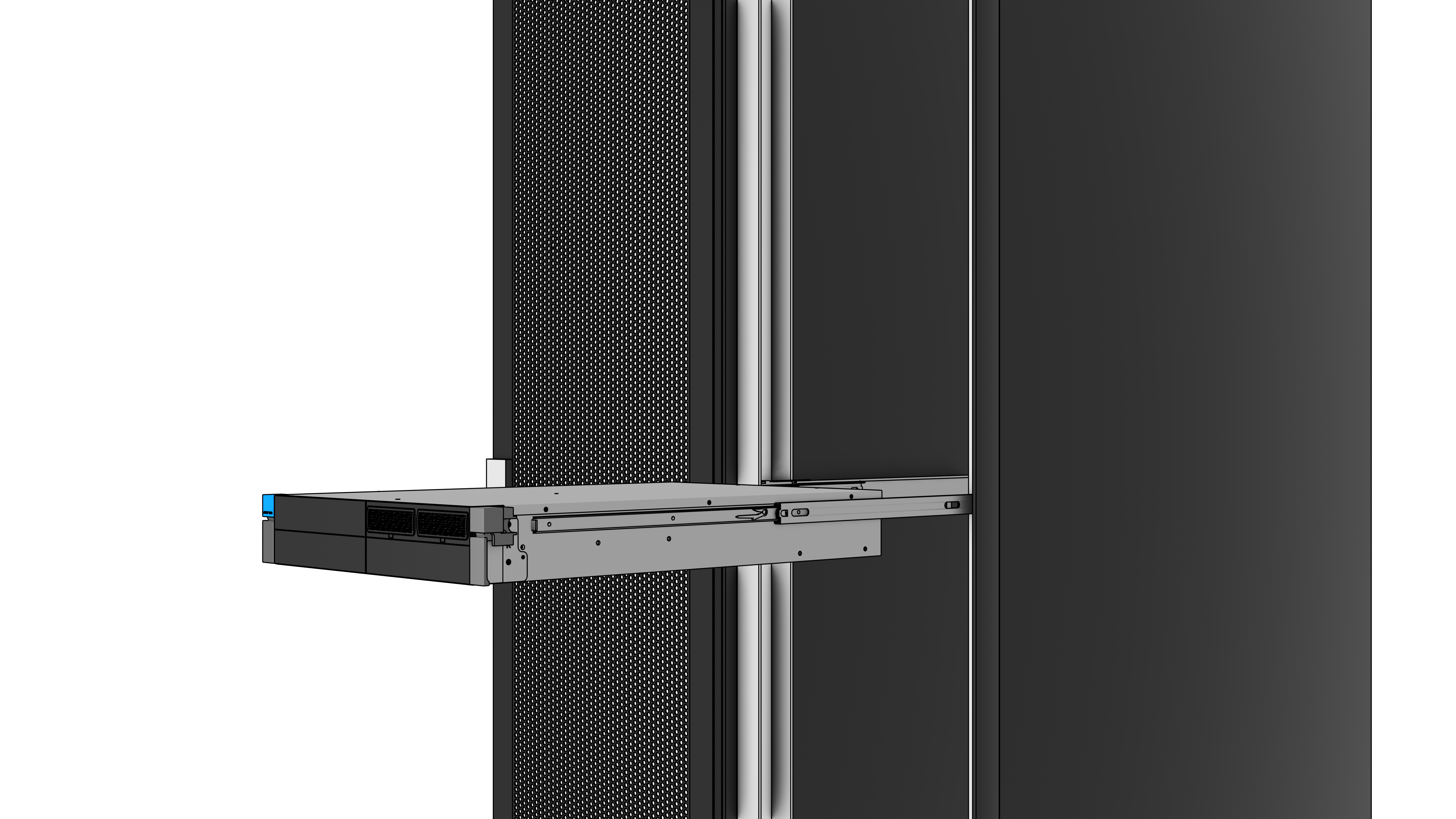

Insert Controller

  • ➤ Now insert the controller into the guide using the side-mounted rails.

  • ➤ After fully inserting the controller, both the guide rails and the locking mechanism of the controller will engage on the locking bolt.
