Monitor system status
Overview of components
In the 'Overview' section, you can view the operational status as well as the temperature of the individual components. Additionally, you will find an audit radar that allows you to see which Bricks are currently undergoing a digital audit.
To view the operational status of a component, proceed as follows:
➤ Click on the 'System Status' folder in the navigation bar.
➤ Double-click on the term 'State' in the main window.
➤ The 'Overview' area and the 'State' option will now be displayed in the main window.
➤ Move the mouse pointer over a component (e.g., a Brick or a Controller).

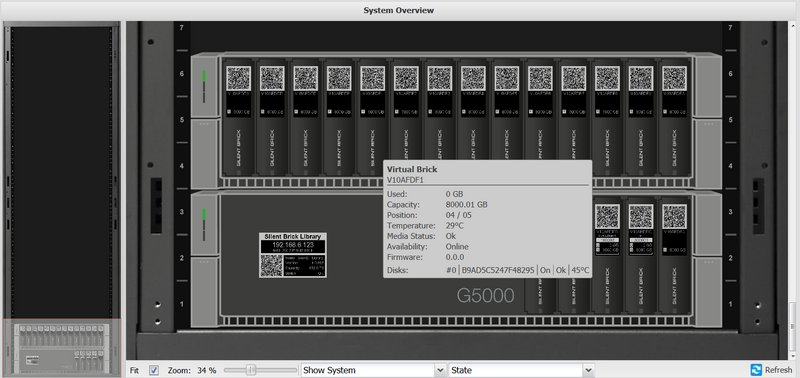

➤ A context menu displaying the operational status of the corresponding component will appear.
To view the temperature of the components, proceed as follows:
➤ Click on the 'System Status' folder in the navigation bar.
➤ Double-click on the term 'Temperatures' in the main window.

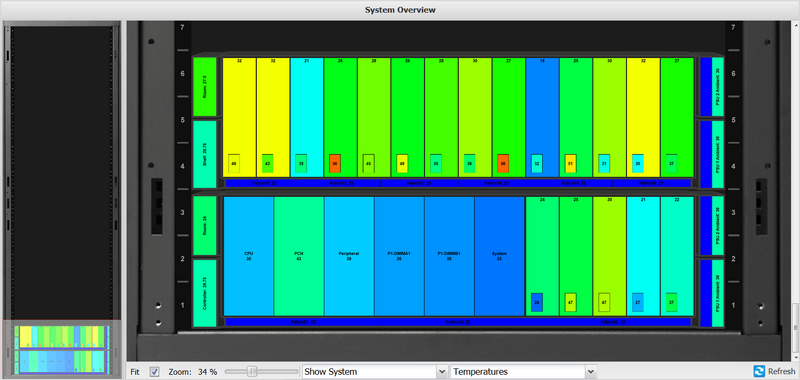

➤ A thermal image showing the respective temperatures of the components will now be displayed in the main window.
]
To view the Audit Radar, proceed as follows:
➤ Click on the 'System Status' folder in the navigation bar.
➤ Double-click on the term 'Audit Radar' in the main window.
The progress of the Digital Audit will be displayed as follows:
Blue: Audit has been initialized
Green: Progress of the audit.
To identify and locate a brick, proceed as follows:
➤ Click on the term 'Overview' in the navigation bar under the folder 'System Status'.

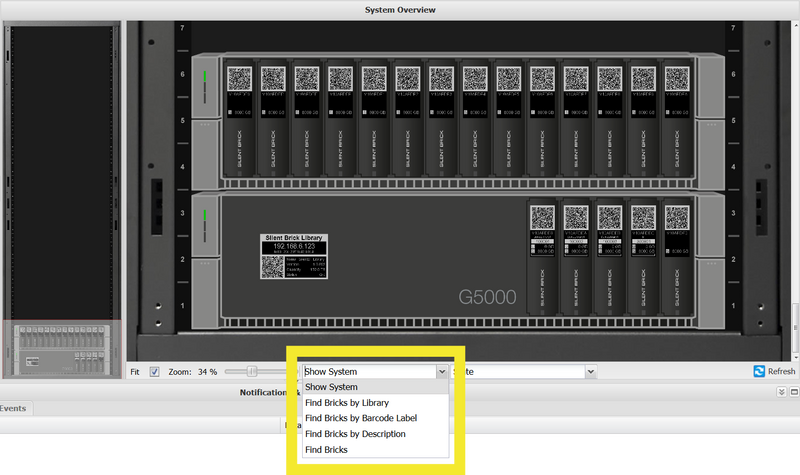

➤ In the lower area of the main window, select one of the options 'Find Bricks…'.
➤ Choose the library, barcode, or description of the corresponding brick.

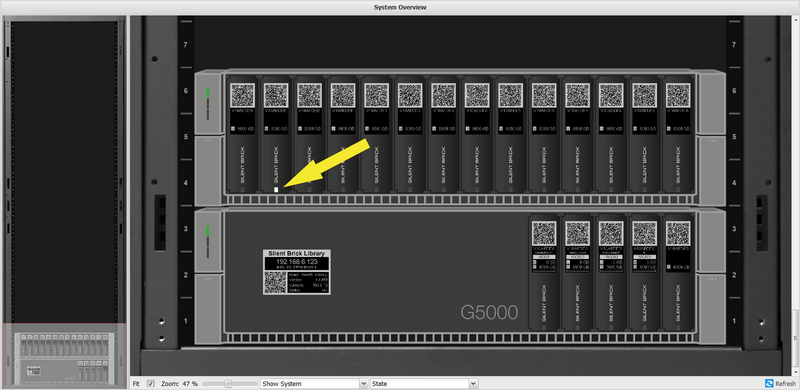

➤ The brick will now be highlighted in white.
To locate a brick using a light signal, proceed as follows:
➤ Click on the term 'Overview' in the navigation bar under the folder 'System Status'.
➤ Right-click on a brick in the main window.
➤ A context menu will open.
➤ Select the option 'Toggle Brick Beacon'.
➤ The light signal of the brick will illuminate on the configuration interface and on the component itself.
Refresh View
To refresh the view of the main window, proceed as follows:
➤ Click the 'Refresh' button.
Statistics

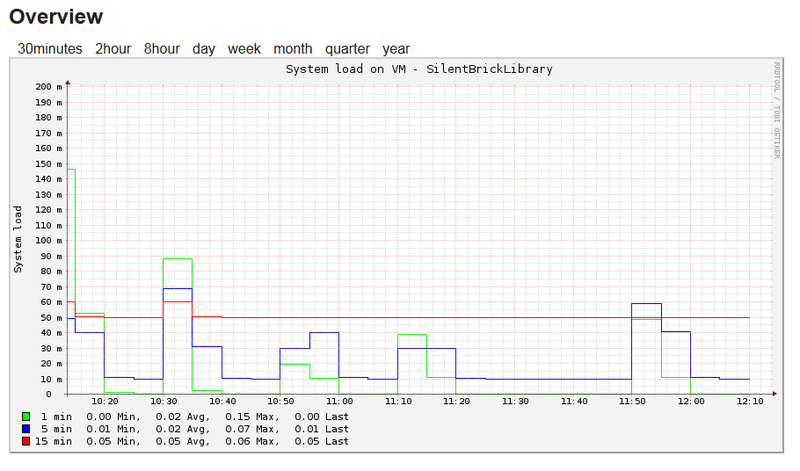

In the section 'Statistics', you will find charts with statistical values for the following areas:
System load,
CPU usage,
Memory usage,
Swap usage,
Uptime,
Interface errors.
To set the time axis of a chart, proceed as follows:
➤ Click on a chart.
➤ A detailed view of the chart will open.
➤ Select the time period to be displayed.
➤ To return to the chart overview, click on the term 'Overview'.
History
In the section 'History', you will find information about important events, such as installations and updates.
Refresh View
To refresh the view of the main window, proceed as follows:
➤ Click the 'Refresh' button.
