The Silent Brick Pro
Overview of Compatibility
Device | Compatibility |
|---|---|
Silent Brick Single Drive | ❎ |
Silent Brick Drive | ❎ |
Silent Brick Drive Plus | ❎ |
Silent Brick Controller | ❎ |
Silent Brick Controller Pro | ✅ |
The Silent Brick Pro is the storage container of the Silent Brick Pro system. A Silent Brick Pro includes twelve slots (3) for SSD storage with the connection type NVME (4). The slots are enclosed by the Silent Brick Pro housing (2).
The slots of the Silent Brick Pro are protected by a cover cap (1). On the top side of the Silent Brick Pro, behind the FAST LTA logo, there is an NFC chip (5) that serves as an electronic label.
The individual slots of the Silent Brick Pro are color-coded by light-emitting diodes to facilitate the correct hard drive replacement in case of an error.

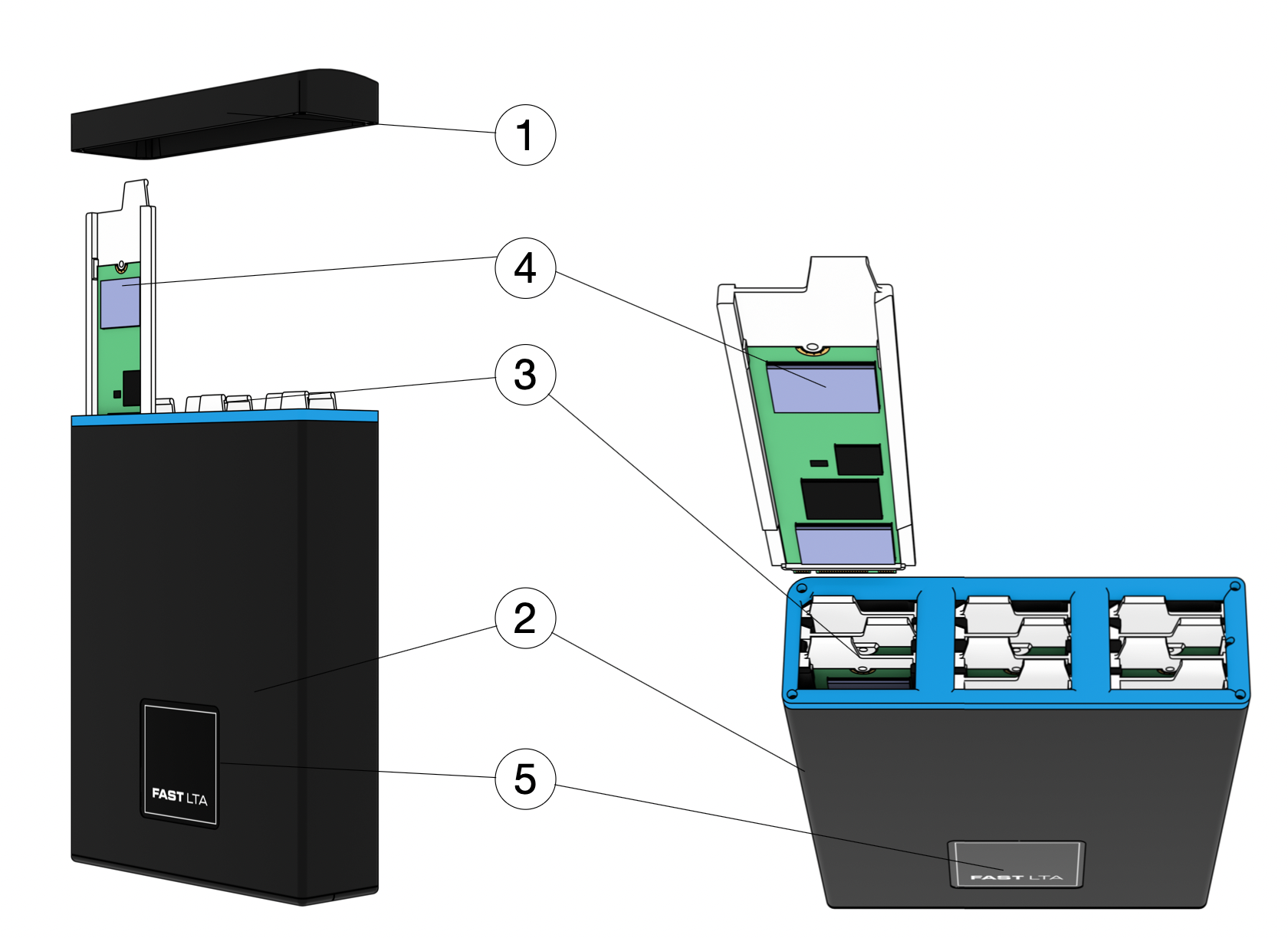

Fig.: Silent Brick Pro Overview
No. | Designation |
1 | Cover Cap |
2 | Brick Housing |
3 | Hard Drive Slots |
4 | Hard drive |
5 | NFC Chip |
