Install Silent Brick Controller X-Series

Disassemble rack rail

The rack rails must first be disassembled into two parts. To do this, proceed as follows:

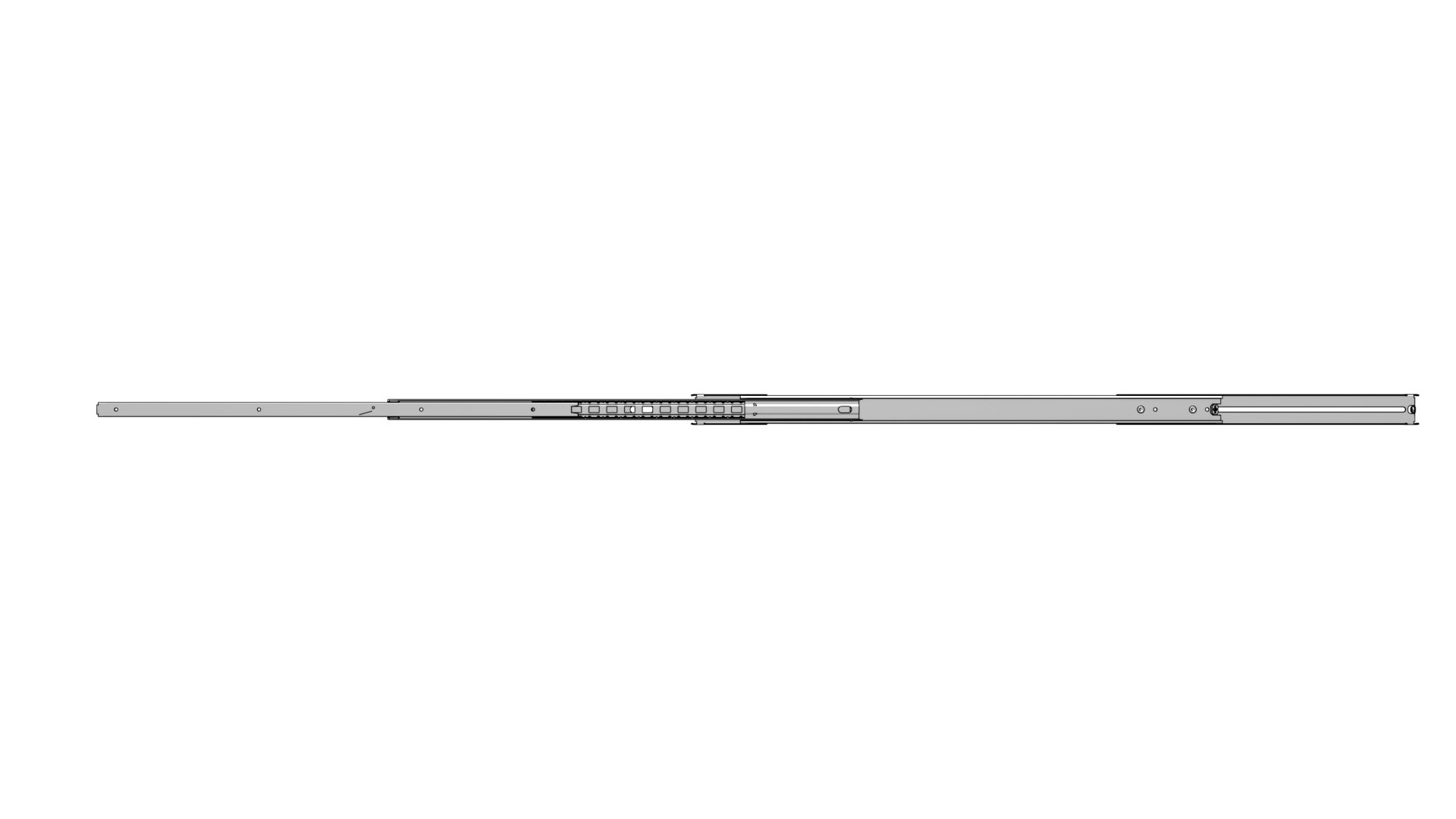

• ➤ Pull the inner rail out of the outer rail until the release lever is visible.

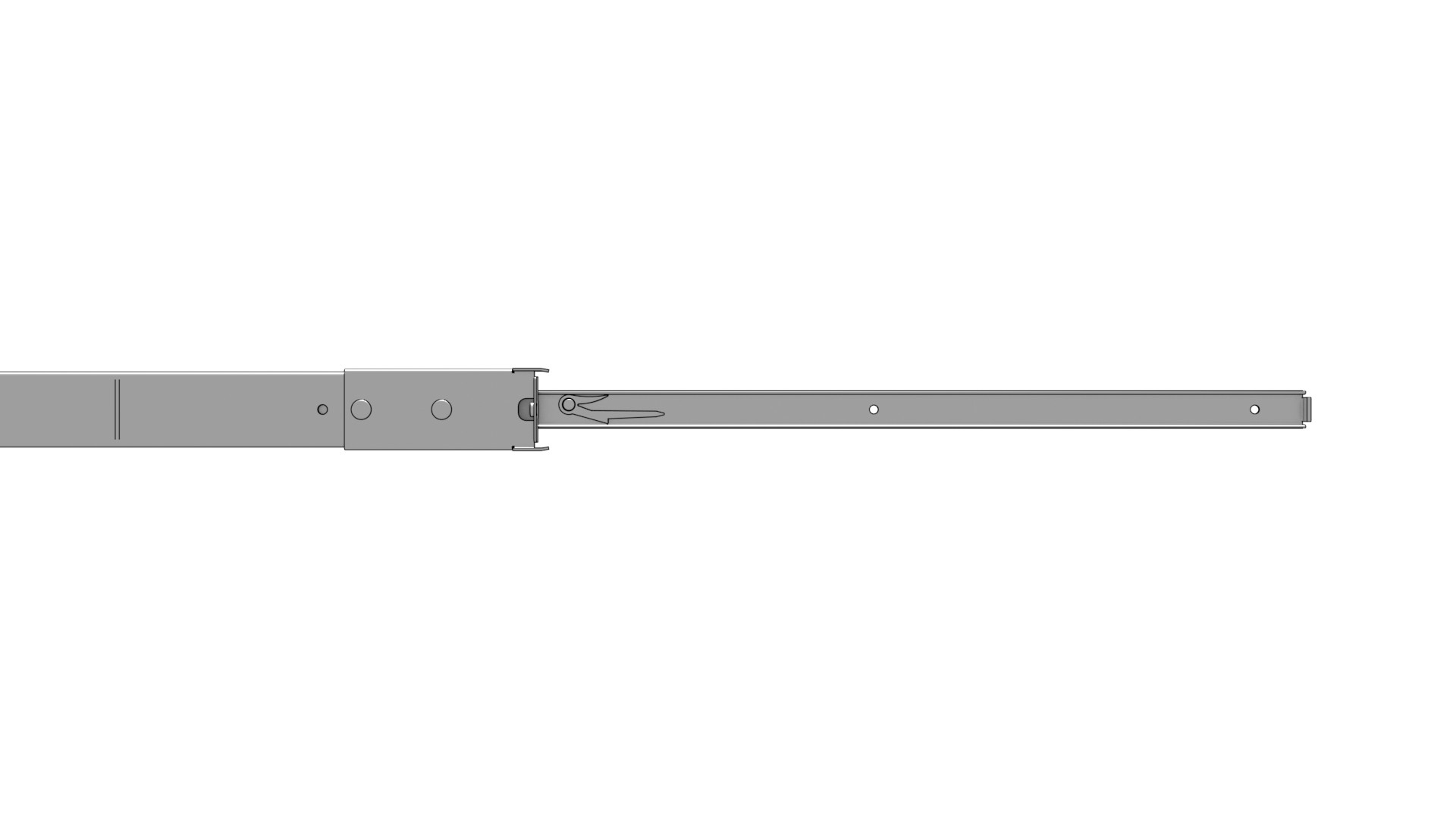

• ➤ Operate the release lever to pull the inner rail out of the rail set.

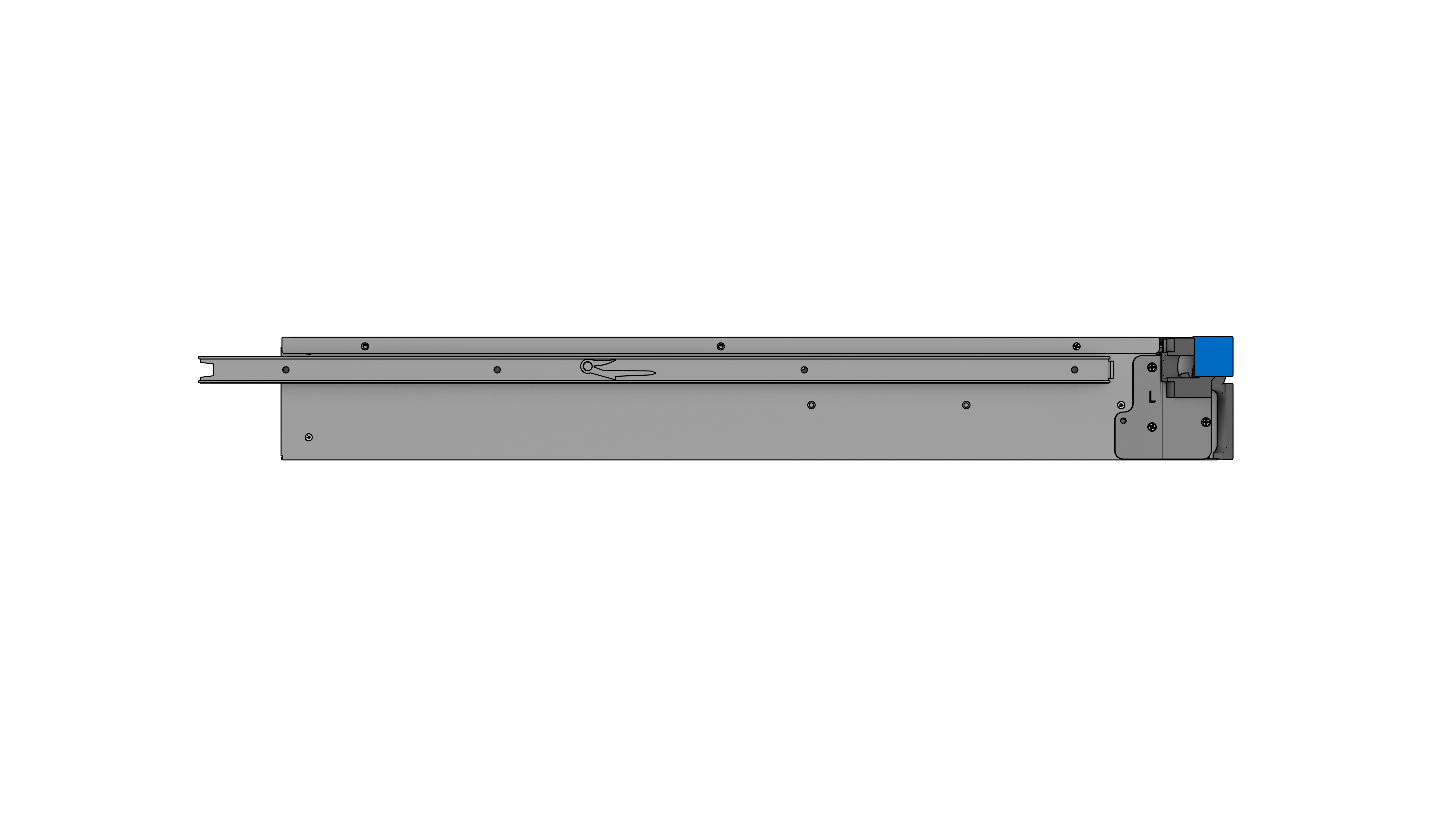

Mount inner rack rail on the controller

• ➤ Attach the inner rail using the included screws on both sides of the Silent Brick Controller Pro.

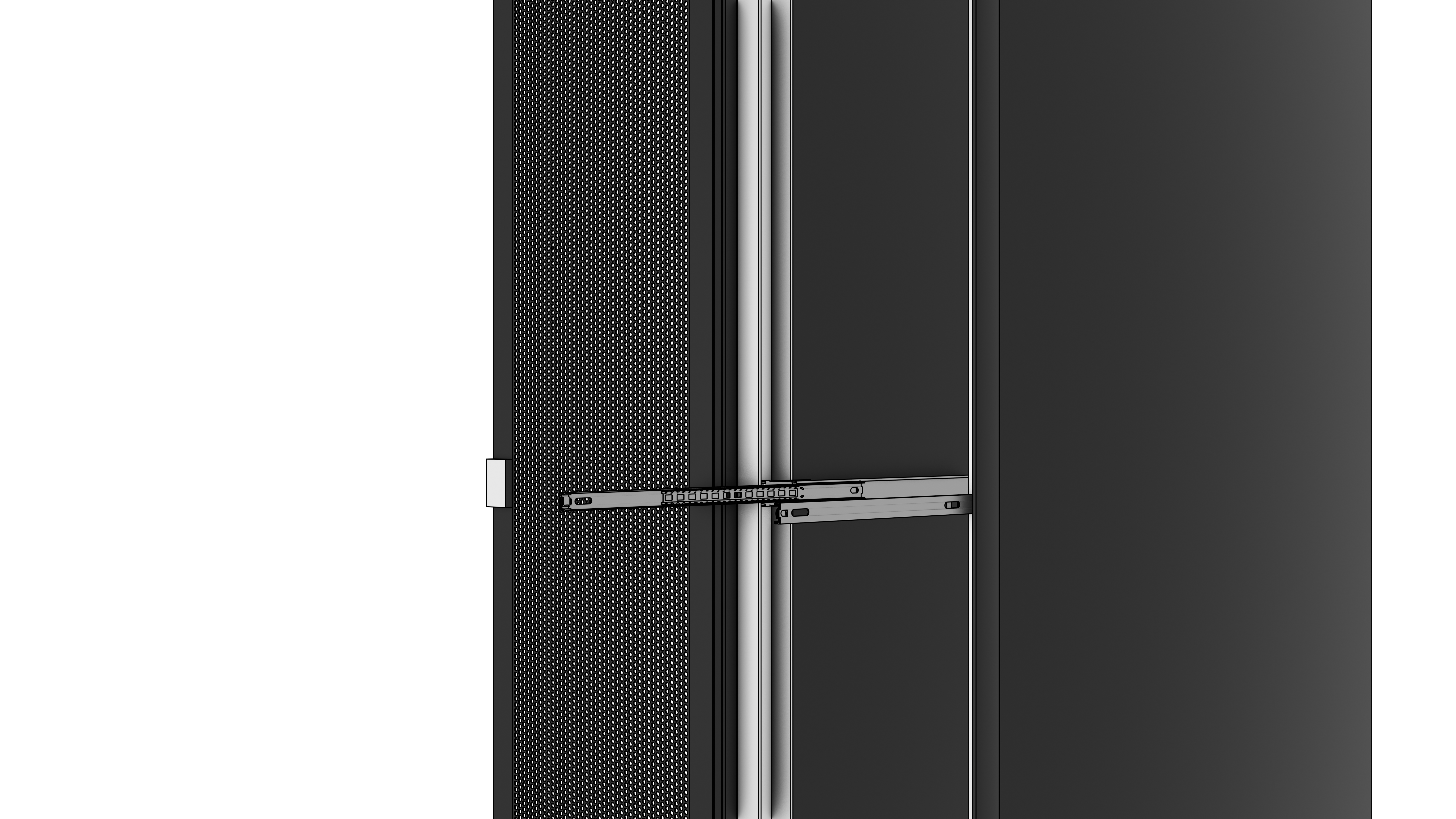

Mount the outer rack rail in the rack

• ➤ Use the included screws to mount the outer rails in the rack.

• ➤ Note that the locking bolts at the front of the rack must be used. These will later secure the Silent Brick Controller Pro in the rack.

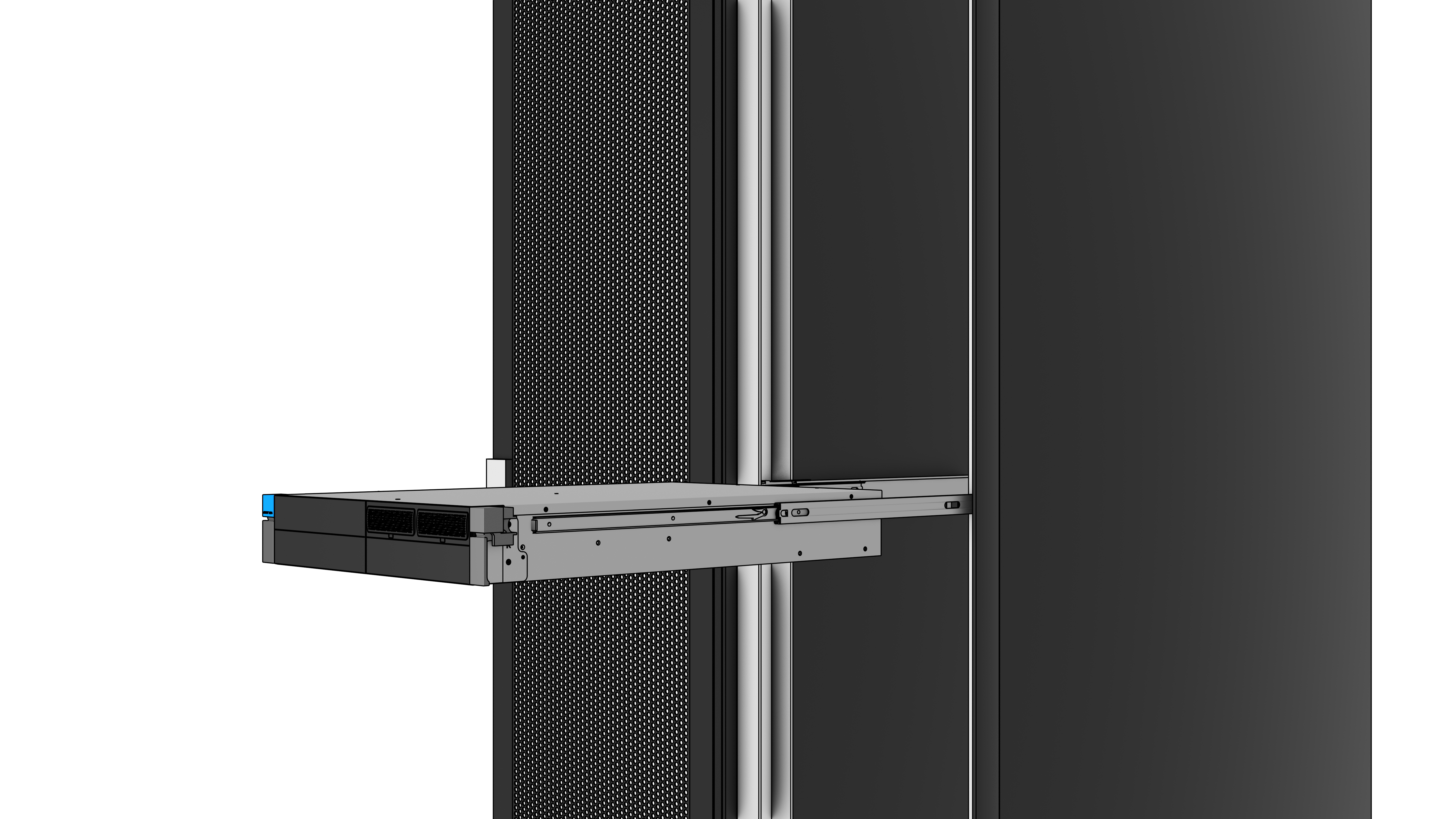

Insert Controller

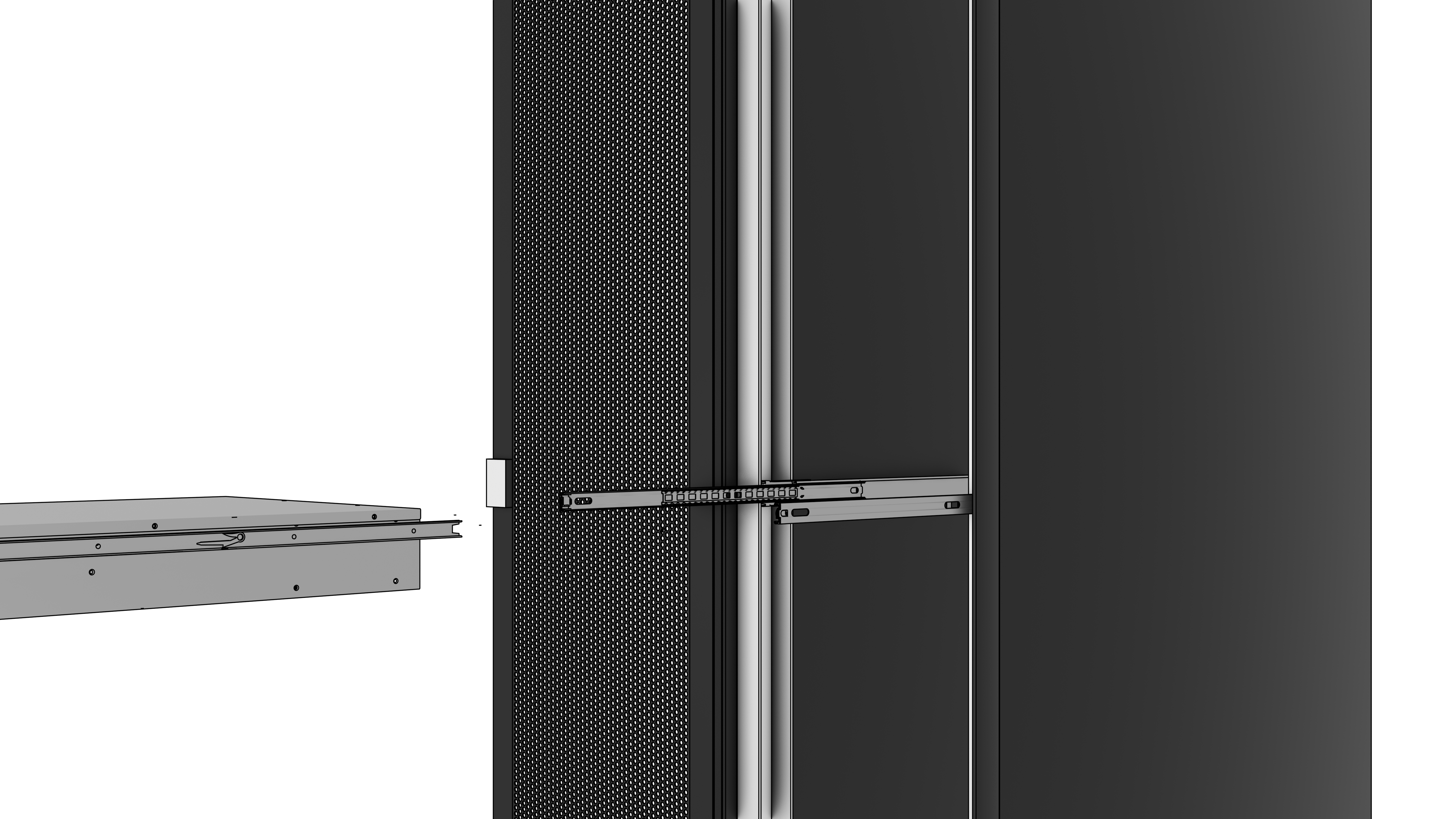

• ➤ Now insert the controller into the guide using the side-mounted rails.

• ➤ After fully inserting the controller, both the guide rails and the locking mechanism of the controller will engage on the locking bolt.
