The Drive Plus

The device may only be opened by qualified personnel.

The device must be connected to a socket with earth contact.

Ensure easy access to the power outlets.

Caution, risk of electric shock: To disconnect the power supply, all power sources must be disconnected to prevent the risk of electric shock.

Caution, risk of electric shock

The Drive Plus is the larger variant of the entry-level or satellite system. It includes a control unit for the Silent Brick Library, two slots (13) for Silent Brick storage containers, as well as two power supplies (16) for power supply, and is not expandable via Shelf.

On the front of the device, to the left of the display, there are three light-emitting diodes (10). These indicate the device status as follows:

• Green: The system is active.

• Yellow: The system is in standby mode.

• Red: The system has detected an error (This LED illuminates in addition to the operating status).

An ePaper Display (11) is located in the center of the drive. It contains the following information about the Silent Brick Library:

• IPv4 address,

• IPv6 address or IPv4 address of the data network in case of network separation,

• Name,

• Version,

• Storage capacity,

• Status,

Locking levers (14) are located at the lower corners of the front side of the device. These levers allow the anchoring between the device and the rack rails to be released.

Fig.: Drive Plus Front

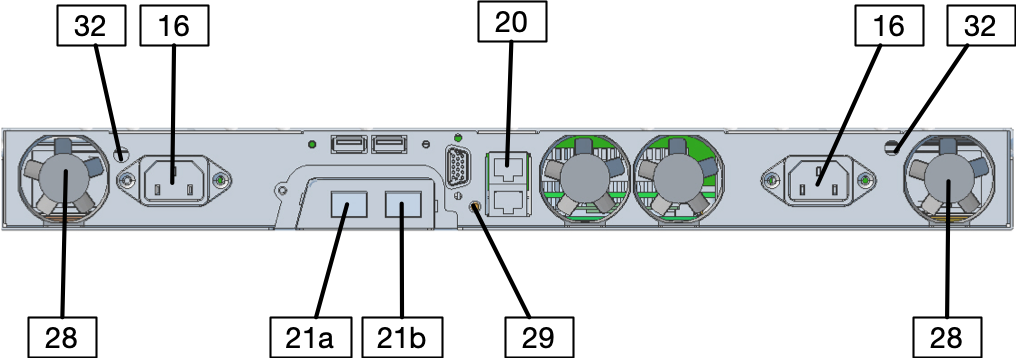

Fig.: Drive Plus Rear
