The Single Drive

The device may only be opened by qualified personnel.

The device must be connected to a socket with earth contact.

Ensure easy access to the power outlets.

Caution, risk of electric shock: To disconnect the power supply, all power sources must be disconnected to prevent the risk of electric shock.

Block Image

Caution, risk of electric shock

Block Image

The Single Drive is the smallest Silent Brick system. It includes a control unit for the Silent Brick Library, one slot (13) for Silent Brick Storage Containers, and two power supplies (16) for energy supply. It is not expandable via Shelf.

On the front of the device, there are three light-emitting diodes (10). These indicate the device status as follows:

  • Green: The system is active.

  • Yellow: The system is in standby mode.

  • Red: The system has detected an error (This LED illuminates in addition to the operating status).

Block Image

Fig.: Drive front side

No.

Designation

10

Operating status indicator

13

Slot for Silent Bricks

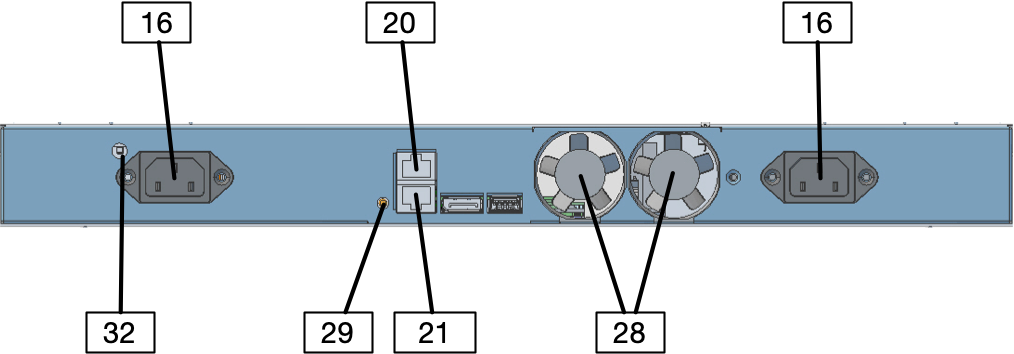

Fig.: Single Drive rear side

No.

Designation

16

Power supply

20

Management port Mgmt1
(1GB Ethernet RJ45)

21

Data port Data1
(1GB Ethernet)

28

Fan

29

Power

32

Emergency release of the slots for Silent Bricks
