Manage Devices

In the 'Resources' section, you can manage the controllers, Shelves, and Bricks of the Silent Brick Library.

Manage Controllers

The 'Controllers' section provides an overview of all controllers and their associated information.

To configure a controller, proceed as follows:

  • ➤ Double-click on a controller.

  • ➤ The 'Edit Controller' window will appear.

  • ➤ Enter a description for the controller.

  • ➤ Select a server rack for the controller.

  • ➤ Select a rack position for the controller.

  • ➤ To confirm your entries, click the “Save” button.

  • ➤ To cancel your entries, click the "Cancel" button.

Manage Shelves

The 'Shelves' section provides an overview of all Shelves and their associated information.

To configure a Shelf, proceed as follows:

  • ➤ Double-click on a Shelf.

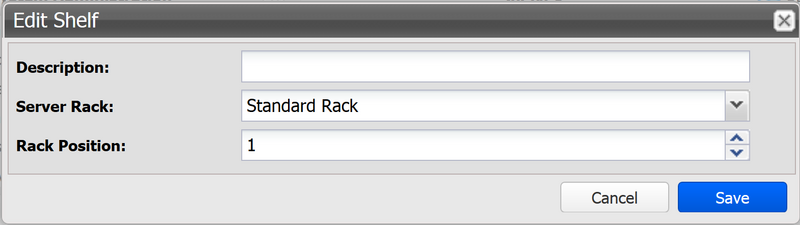

  • ➤ The “Edit Shelf” window will appear.

  • ➤ Enter a description for the Shelf.

  • ➤ Select a server rack for the Shelf.

  • ➤ Select a rack position for the Shelf.

  • ➤ To confirm your entries, click the “Save” button.

  • ➤ To cancel your entries, click the "Cancel" button.

Managing Bricks

The “Bricks” section provides an overview of all Bricks and their associated information.

To configure a Brick, proceed as follows:

  • ➤ Double-click on a Brick.

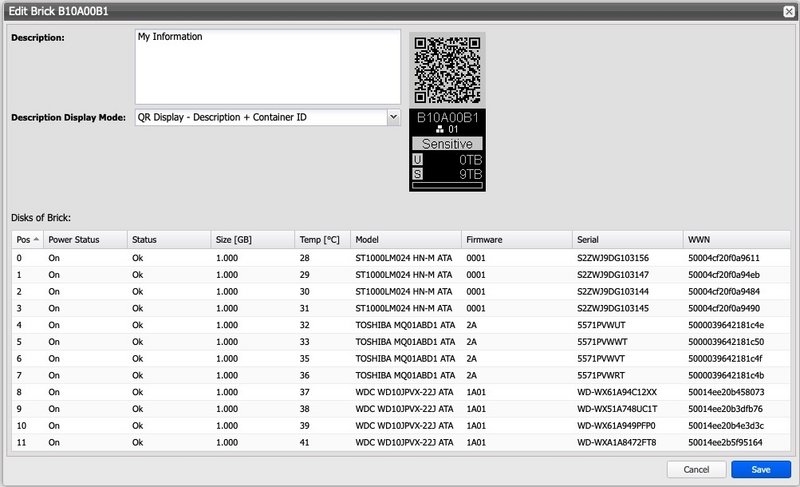

  • ➤ The “Edit Brick” window will appear.

  • ➤ Enter a description for the Brick.

  • ➤ Select a display mode for the display.

    • ➤ “QR Display”: A QR code will be shown containing the corresponding fields.

    • ➤ "Text Display": The description of the Brick is shown as text. You can select from different orientations.

  • ➤ To confirm your entries, click the “Save” button.

  • ➤ To cancel your entries, click the "Cancel" button.

To add a Brick to a Library, proceed as follows:

  • ➤ Click on a Brick to select it.

  • ➤ Click the button "Add to Library/Volume".

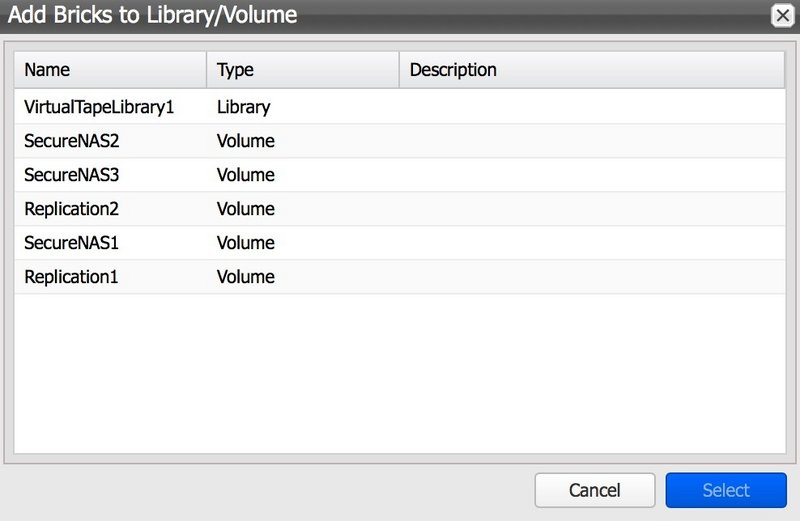

  • ➤ The "Select Library/Volume" window will appear.

  • ➤ Click on a Library to select it.

  • ➤ To confirm your selection, click the button "Select".

  • ➤ To cancel your selection, click the button "Cancel".

To remove a Brick from a Library, proceed as follows:

  • ➤ Click on a Brick to select it.

  • ➤ Click the button "Remove from Brick".
