Wiring of the Silent Brick Drive

  • ➤ Connect the device to the management network (optional).

  • ➤ Use the management ports (20) for this purpose.

  • ➤ Connect the device to the data/management network.

  • ➤ Use the data ports (21) for this purpose.

  • ➤ Connect the device to the power supply.

  • ➤ Use the connectors on the power supplies (16) for this purpose. If possible, connect each power supply to a separate power circuit.

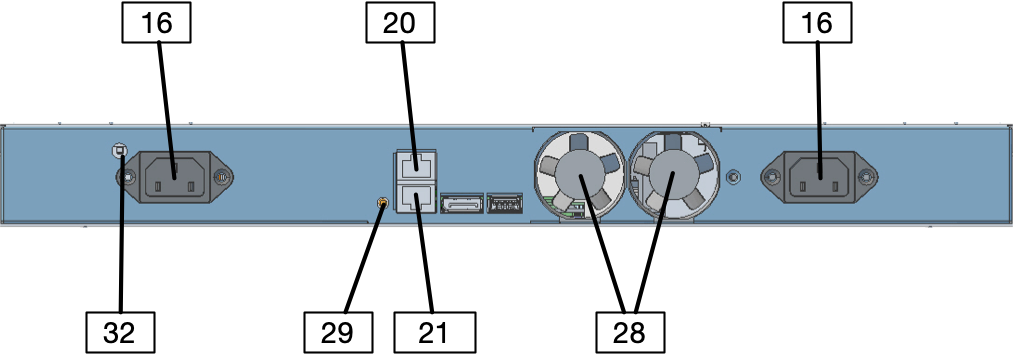

Fig.: Rear view of the Silent Brick Single Drive G1000

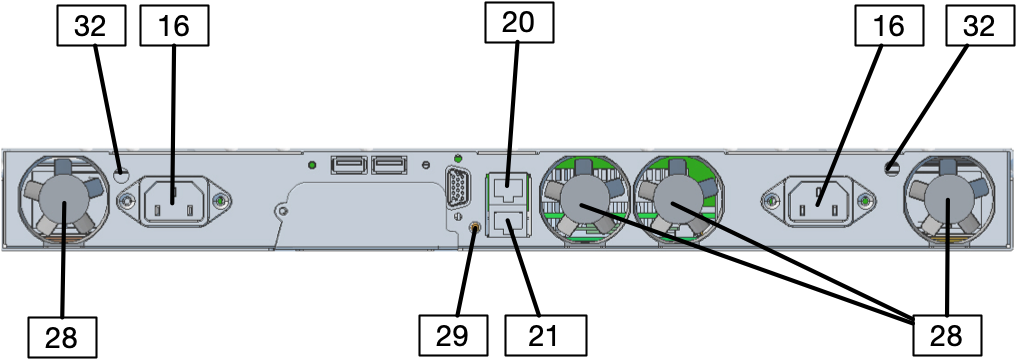

Fig.: Silent Brick Drive G2000 Rear View

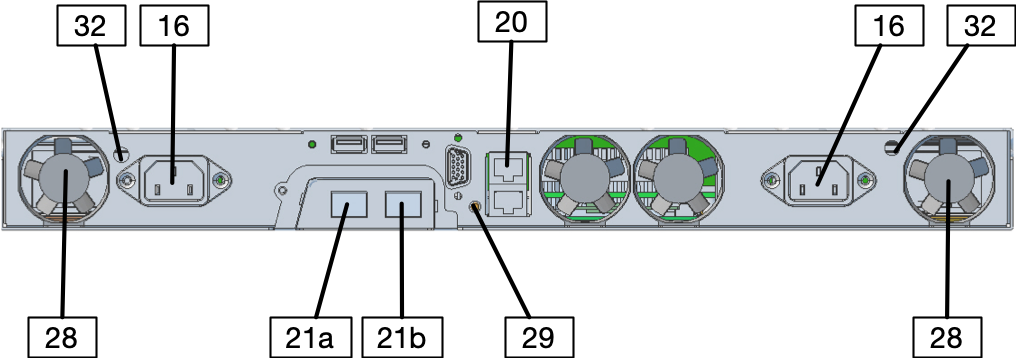

Fig.: Silent Brick Drive Plus G2200 Rear View
