Assembly Single Drive / Drive / Drive Plus

Mount rack rails

Disassemble rack rails

The rack rails must first be disassembled into two parts. Proceed as follows:

  • ➤ Pull the inner rail out of the outer rail until the unlock lever (32) is visible.

Fig.: Pulling out inner rack rails

  • ➤ Operate the unlock lever (32).

  • ➤ Pull the inner rail completely out of the outer rail.

Fig.: Unlock lever

Mount inner rack rails to the drive

To mount the inner rack rails to the drive, proceed as follows:

  • ➤ Position the inner rack rail onto the side housing of the drive so that the screw holes align with the rail.

  • ➤ Secure the rails on both sides to the housing using one of the enclosed M4×4 screws each.

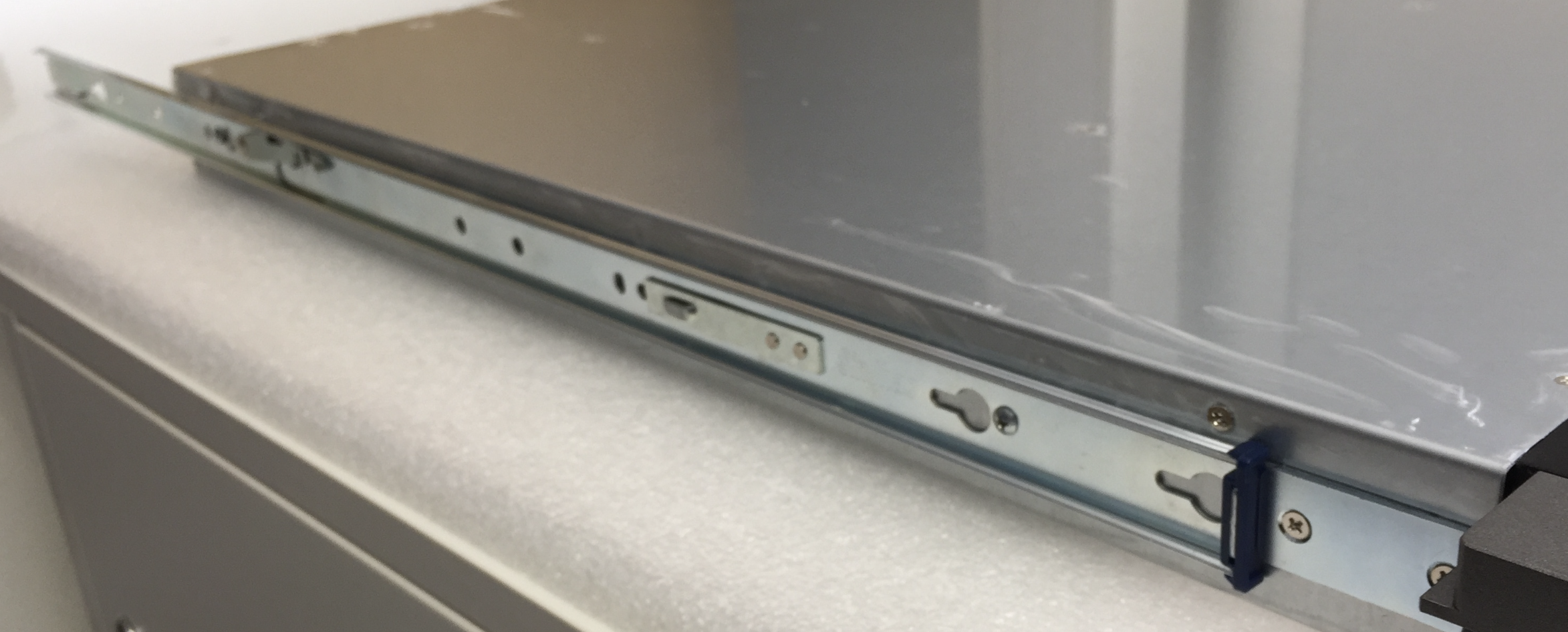

Fig. Screw rack rails

Mount outer rack rails in the rack

  • ➤ To mount the outer rack rails in the rack, proceed as follows:

  • ➤ Slide the safety mechanism (33) of the rail backward.

  • ➤ Hook the rail into the rack.

Fig.: Safety mechanism

  • ➤ Release the safety mechanism.

  • ➤ Ensure that the rectangular locking pins are properly anchored in the rack holes.

Fig.: Locking pin

  • ➤ Screw the rack rail on the front side of the rack to the locking peg.

Fig.: Locking peg

  • ➤ Screw the rack rail on the rear side of the rack with the locking screw.

Fig.: Locking screw

Insert controller/shelf into rack

To insert a controller or a shelf into a rack, proceed as follows:

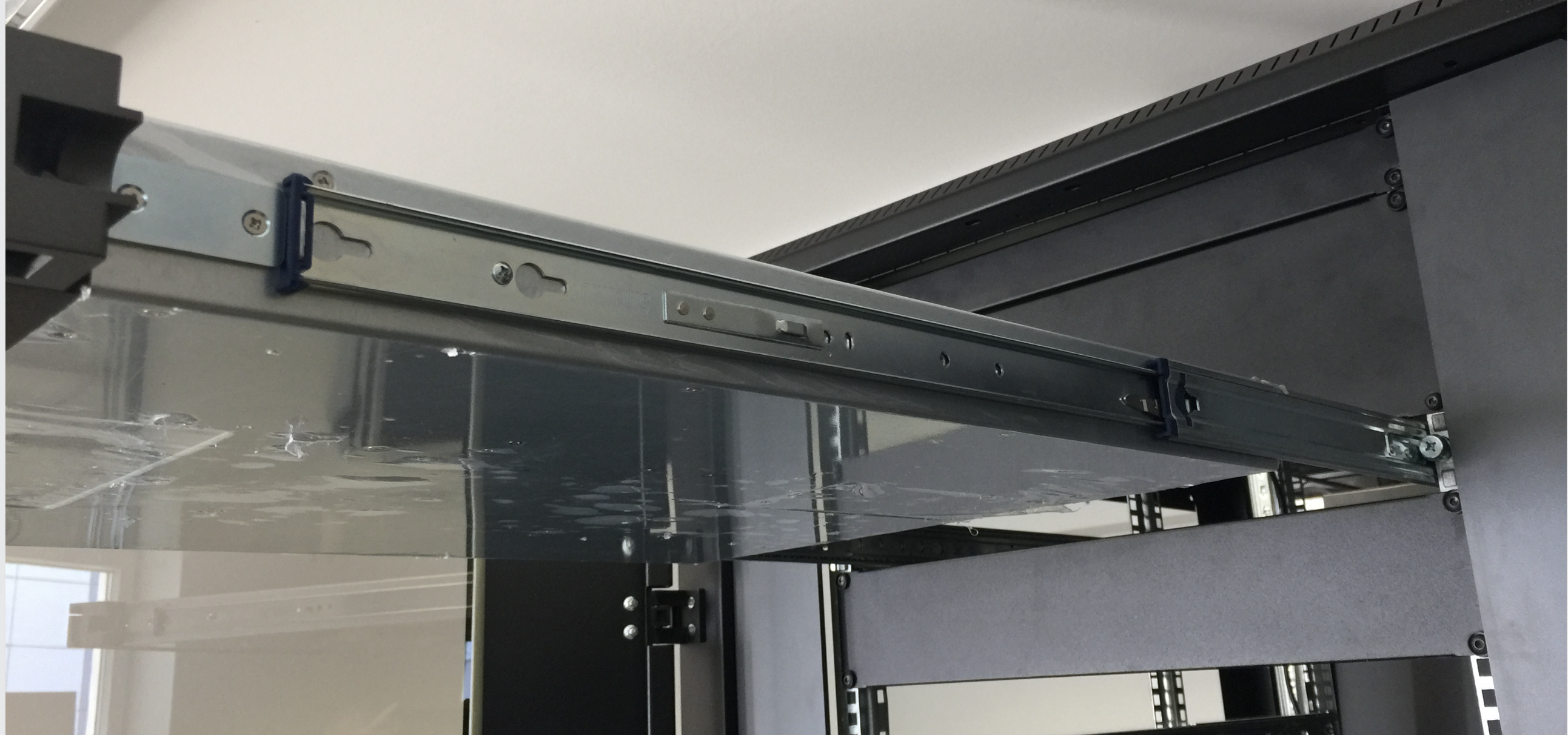

  • ➤ Pull the outer rack rails out of the rack as far as possible.

Fig.: Pulling out rack rails

  • ➤ Hang the device so that the inner rack rails slide into the outer rack rails.

  • ➤ Push the device into the rack until it stops.

Fig.: Insert device

  • ➤ Operate the Unlock Lever.

Fig.: Unlock Lever

  • ➤ Slide the device into the rack until the locking mechanism engages.
