The Silent Brick Pro
Compatibility overview
Device | Compatibility |
---|---|
Silent Brick Single Drive | ❎ |
Silent Brick Drive | ❎ |
Silent Brick Drive Plus | ❎ |
Silent Brick Controller | ❎ |
Silent Brick Controller Pro | ✅ |
The Silent Brick Pro is the storage container of the Silent Brick Pro system. One Silent Brick Pro contains twelve slots (3) for SSD storage with NVME connection type (4). The slots are enclosed by the Silent Brick Pro housing (2).
The slots of the Silent Brick Pro are protected by a cover cap (1). On the top side of the Silent Brick Pro, behind the FAST LTA logo, there is an NFC chip (5) that serves as an electronic label.
The individual slots of the Silent Brick Pro are color-coded by light-emitting diodes to facilitate correct hard disk replacement in case of failure.

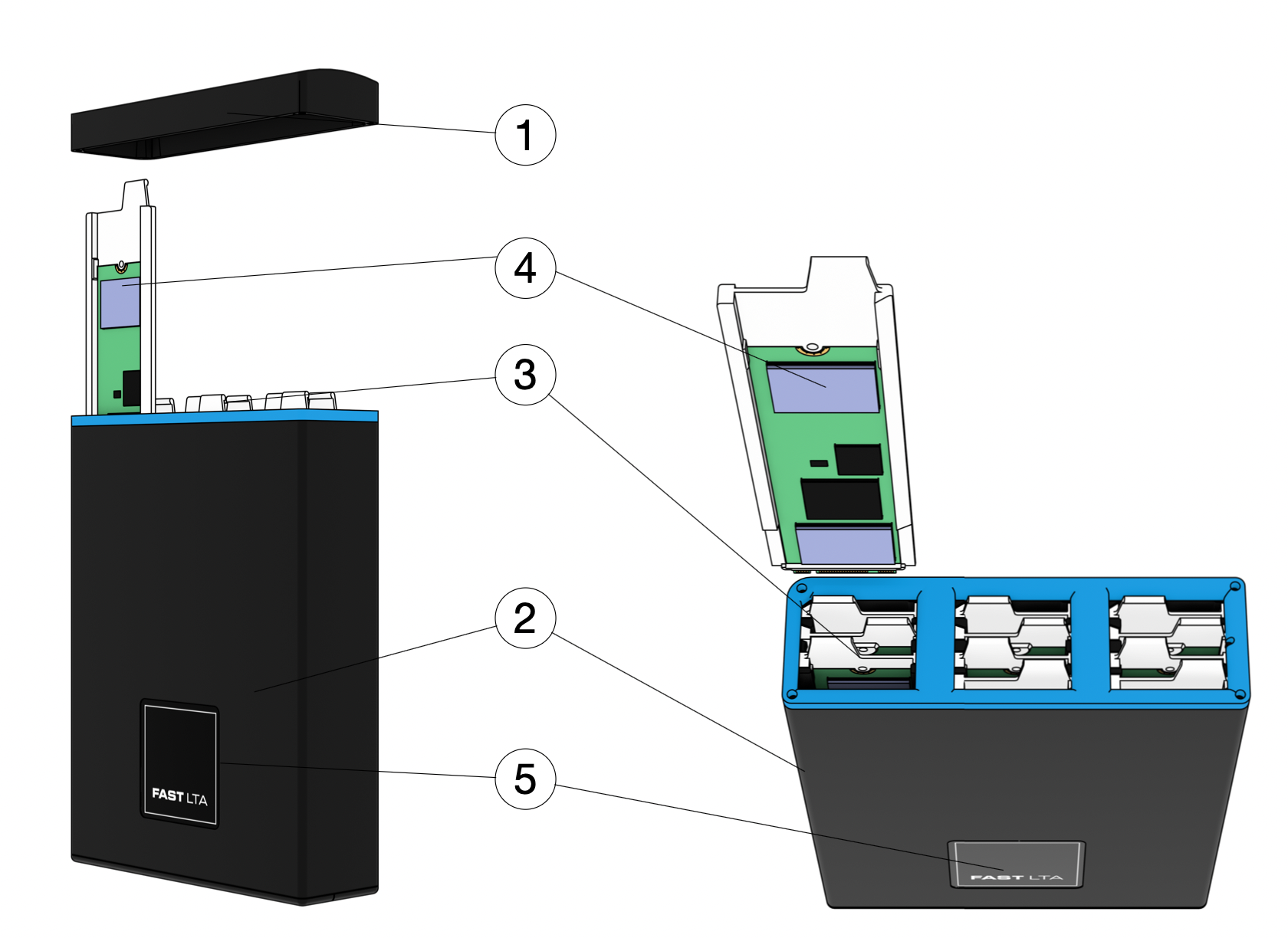

Fig.: Silent Brick Pro Overview
No. | Designation |
1 | Protective Cap |
2 | Brick enclosure |
3 | Hard disk slots |
4 | Hard disk |
5 | NFC Chip |
