Silent Brick Controller X series

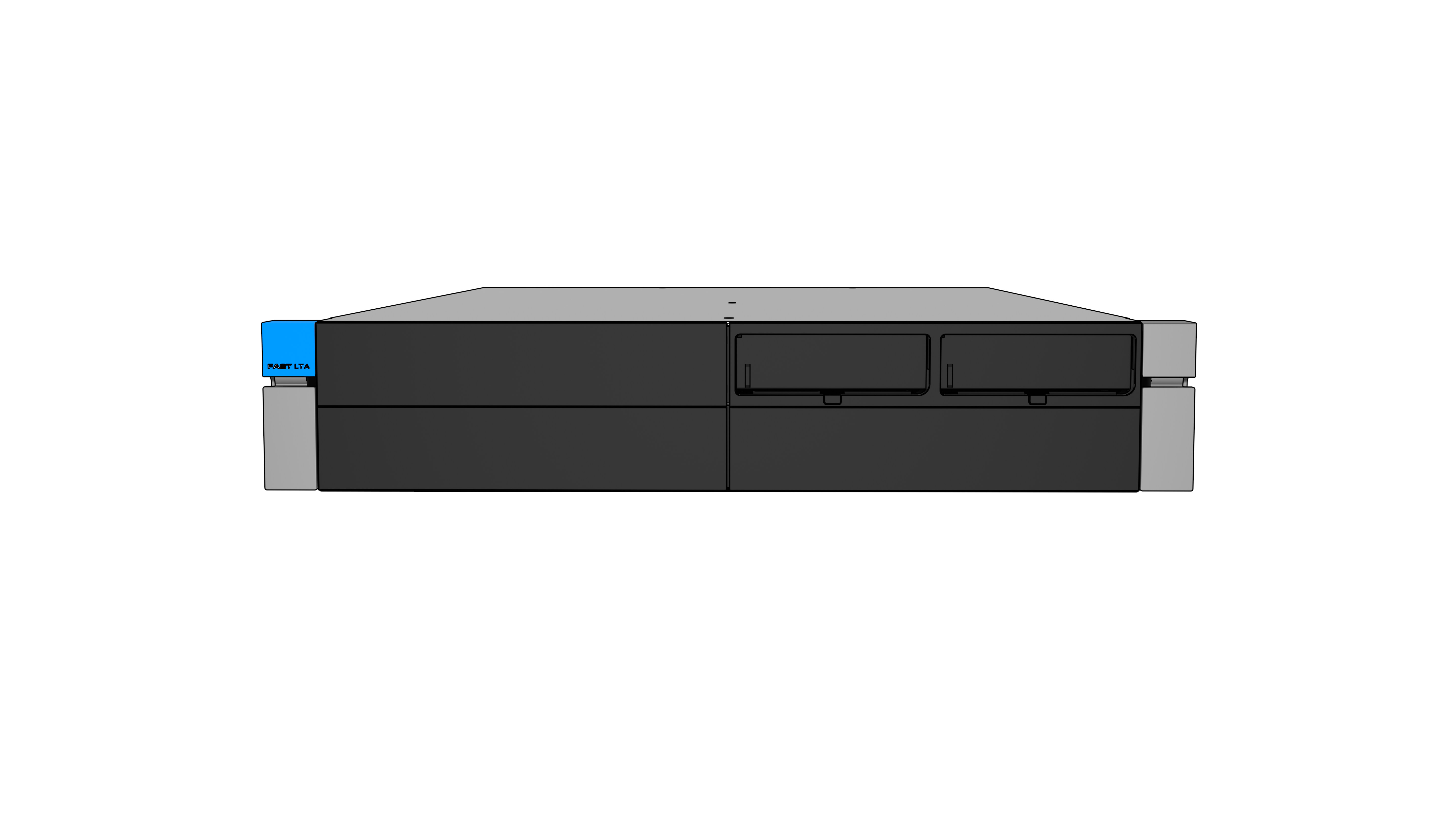

X4020

Serial number
Number of slots	2 slots for Silent Bricks Pro
Data Interface	Dual 10 Gb SFP+, included modules: 10 GbE RJ45, 10 GbE Optical, 1 GbE RJ45
Data interface FC	Optional expansion with Fibre Channel 2x32 Gb
Management Interface	1x 1 GbE for administration & API, 1x 1 GbE IPMI for hardware monitoring
Interface extension	Serial Attached SCSI (SAS), 2x 12 Gbit/s HD-Mini SAS SFF-8644 for Silent Brick Max
RAM	32 GByte (2 x 16 GByte DDR4)
CPU	AMD Ryzen 7 5700X / 8 Core, 3.4 GHz, 4.6 GHz boost
Power consumption	Approx. 236 watts (with 2 Silent Bricks Pro in active use)
Dimensions	Height: 2U (8.9 cm) Width: 19” (48.2 cm) Depth: 640 mm Rail set depth: 620 mm to 820 mm
Weight	Approx. 14 kg (empty), approx. 15 kg (with 2 Silent Brick Pro)

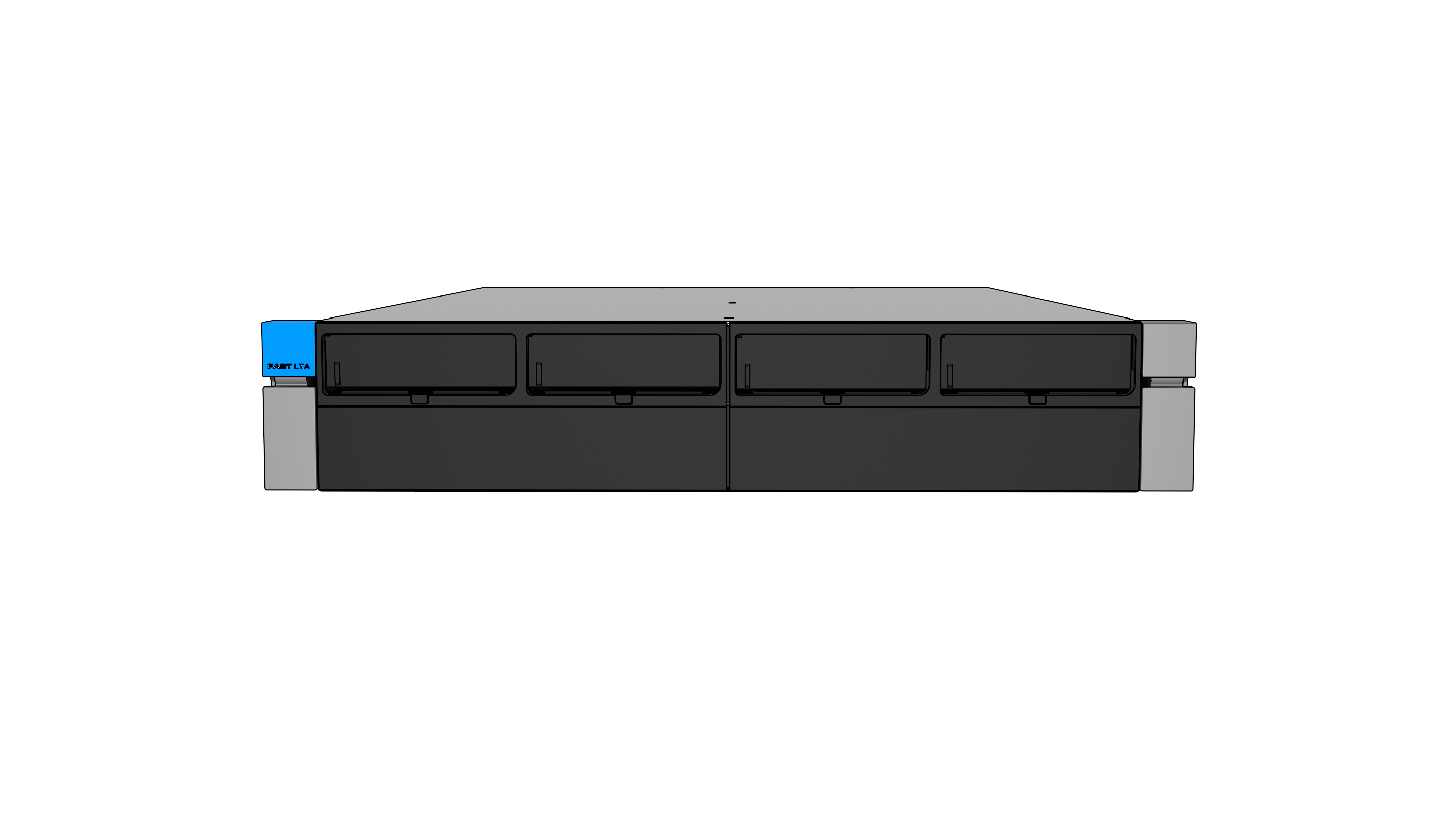

Serial number
Number of slots	4 slots for Silent Bricks Pro
Data Interface	Dual 10 Gb SFP+, included modules: 10 GbE RJ45, 10 GbE Optical, 1 GbE RJ45
Data interface FC	Optional expansion with Fibre Channel 2x32 Gb
Management Interface	1x 1 GbE for administration & API, 1x 1 GbE IPMI for hardware monitoring
Interface extension	Serial Attached SCSI (SAS), 2x 12 Gbit/s HD-Mini SAS SFF-8644 for Silent Brick Max
RAM	64 GB (4 x 16 GB DDR5, 4800 ECC)
CPU	Intel® Xeon Silver 4410T 10 x 2.7 GHz, 4 GHz boost
Power consumption	Approx. 236 watts (with 2 Silent Bricks Pro in active use)
Dimensions	Height: 2U (8.9 cm) Width: 19” (48.2 cm) Depth: 640 mm Rail set depth: 620 mm to 820 mm
Weight	Approx. 14 kg (empty), approx. 15 kg (with 2 Silent Brick Pro)

Serial number
Number of slots	8 slots for Silent Bricks Pro
Data Interface	Dual 100 GbE QSFP+, included modules: 10/25 GbE (RJ45), 10 GbE SFP+, 100 GbE (MTP/MPO)
Data interface FC	Optional expansion with Fibre Channel 2x32 Gb
Management Interface	1x 1 GbE for administration & API, 1x 1 GbE IPMI for hardware monitoring
Interface extension	Serial Attached SCSI (SAS), 2x 12 Gbit/s HD-Mini SAS SFF-8644 for Silent Brick Max
RAM	128 GB (8 x 16 GB DDR5, 4800 ECC)
CPU	Intel® Xeon Silver 4410T 10 x 2.7 GHz, 4 GHz boost
Power consumption	Approx. 236 watts (with 2 Silent Bricks Pro in active use)
Dimensions	Height: 2U (8.9 cm) Width: 19” (48.2 cm) Depth: 640 mm Rail set depth: 620 mm to 820 mm
Weight	Approx. 14 kg (empty), approx. 15 kg (with 2 Silent Brick Pro)
