Wiring Controller G-Series

If your Silent Brick System consists of multiple controllers and Shelves (e.g., one controller and one Shelf), you must first perform the following steps:

  • ➤ Establish the internal network connection between the controller and the Shelf.

  • ➤ Use the connectors (19) for controller communication and the connectors (18) for Shelf communication.

  • ➤ Establish the SAS connection using the SAS ports (17).

If your Silent Brick System consists of a single device, or if you have already connected multiple devices, proceed as follows:

  • ➤ For a Silent Brick Controller G5000 Rev. 1, connect the Ethernet loop cable to link the controller with its internal Bricks.

Block Image
  • ➤ For a Silent Brick Controller G5000 Rev. 2, connect both the Ethernet loop cable and the SAS loop cable to link the controller with its internal Bricks.

Block Image
  • ➤ For a Silent Brick Controller G5200, connect the Ethernet loop cable and both SAS loop cables to link the controller with its internal Bricks.

Block Image
  • ➤ Use the connectors (19) for controller communication and the connectors (18) for Shelf communication.

  • ➤ Connect the device to the management network (optional).

    • ➤ Use the management ports (20) for this purpose.

  • ➤ Connect the device to the data/management network.

  • ➤ Use the data ports (21) for this purpose.

  • ➤ Connect the device to the power supply.

  • ➤ Use the connectors on the power supplies (16) for this purpose. If possible, connect each power supply to a separate power circuit.

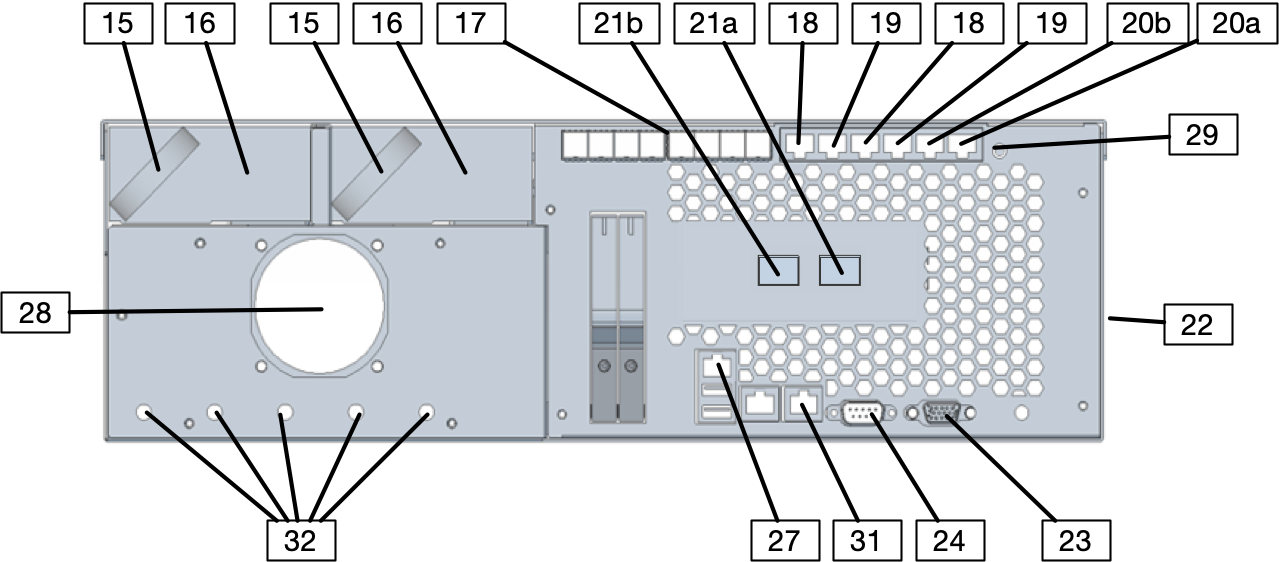

Fig.: Silent Brick Controller Revision 1 rear side

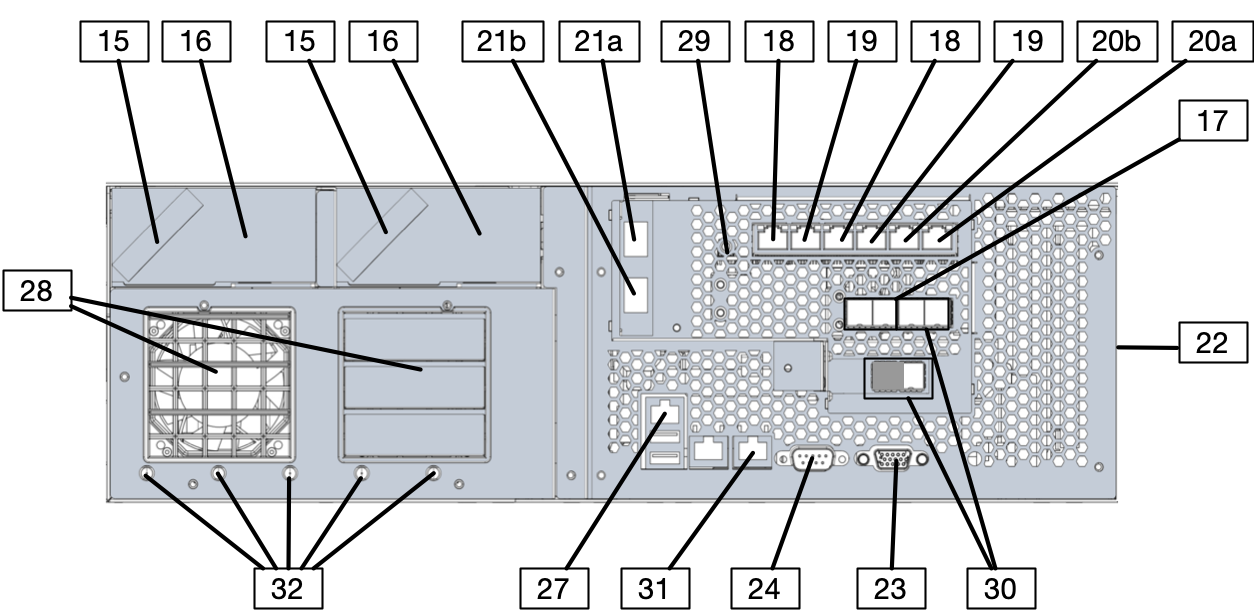

Fig.: Silent Brick Controller Revision 2 rear side

Block Image

Fig.: Extension Shelf Revision 1 Rear

Block Image

Fig.: Extension Shelf Revision 2 Rear

Block Image

Fig.: Cabling of multiple devices
