Monitor system status
Component overview
In the 'Overview' section, you can view the operational status and the temperature of the individual components. Additionally, you will find an audit radar that allows you to see which Bricks are currently undergoing a Digital Audit.
To view the operational status of a component, proceed as follows:
➤ Click on the folder “System Status” in the navigation bar.
➤ Double-click the term “State” in the main window.
➤ The section “Overview” and the option “State” are now displayed in the main window.
➤ Move the mouse pointer over a component (e.g., a Brick or a controller).

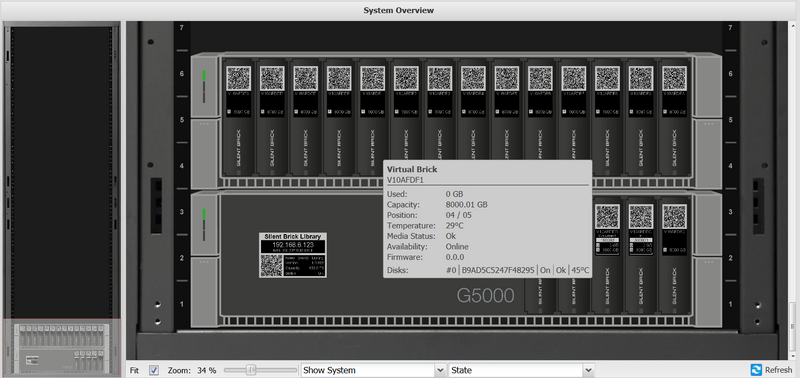

➤ A context menu displaying the operational status of the respective component will appear.
To view the temperature of the components, proceed as follows:
➤ Click on the folder “System Status” in the navigation bar.
➤ Double-click the term “Temperatures” in the main window.

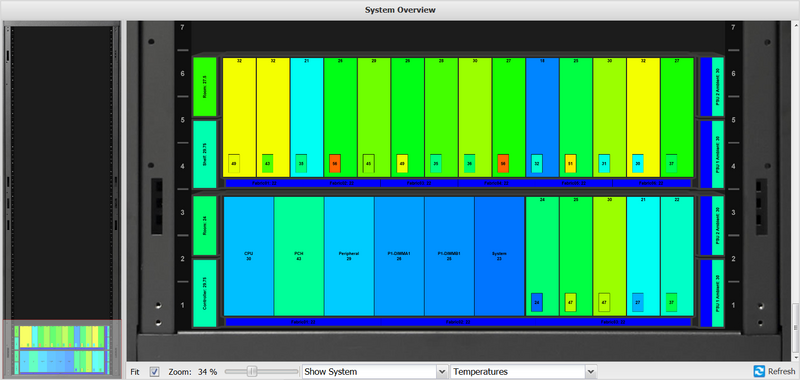

➤ A thermal image showing the respective temperatures of the components is now displayed in the main window.
]
To view the Audit Radar, proceed as follows:
➤ Click on the folder “System Status” in the navigation bar.
➤ Double-click the term “Audit Radar” in the main window.
The progress of the Digital Audit is displayed as follows:
Blue: Audit has been initialized
Green: Progress of the audit.
To identify and locate a Brick, proceed as follows:
➤ In the navigation bar, under the folder “System Status”, click the term “Overview”.

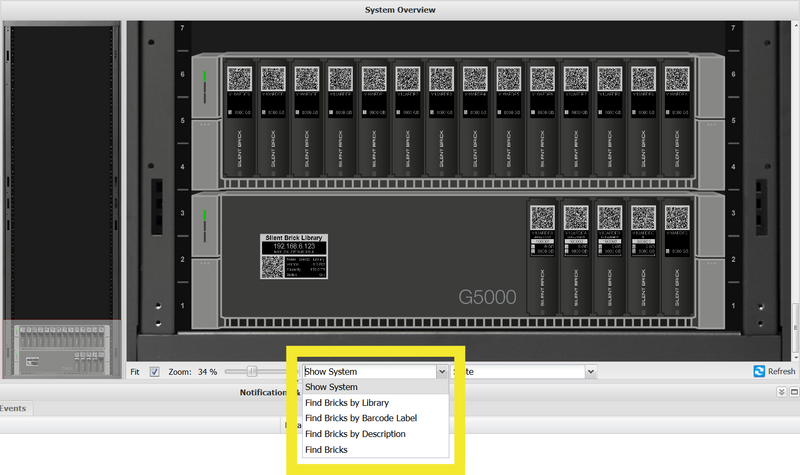

➤ In the lower section of the main window, select one of the options “Find Bricks…”.

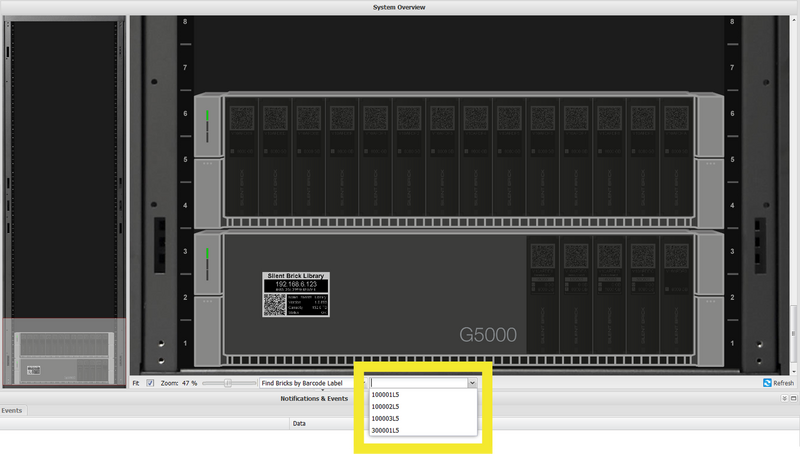

➤ Select the library, barcode, or description of the corresponding Brick.

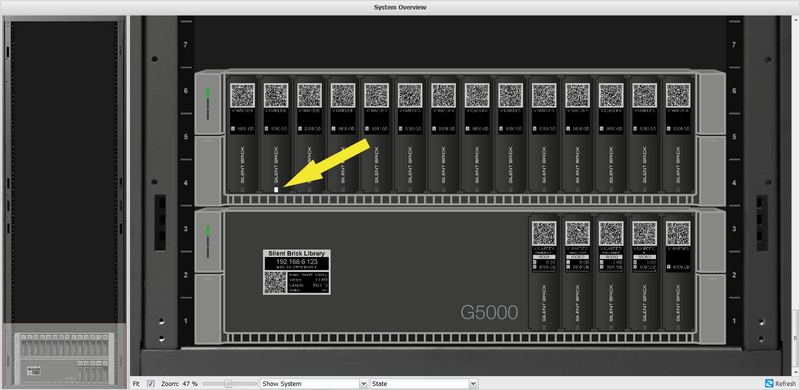

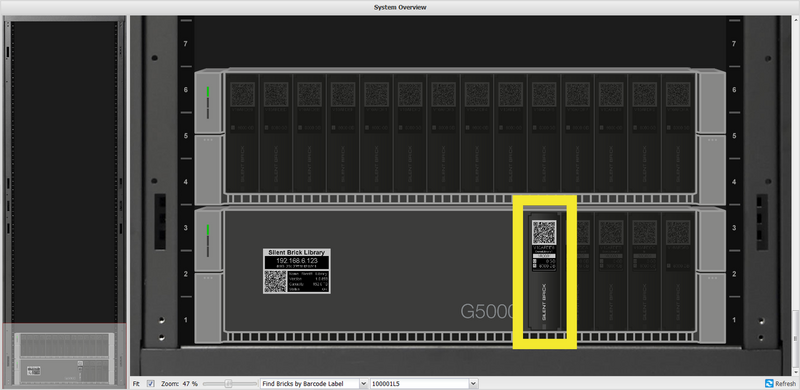

➤ The Brick will now be highlighted in white.
To locate a Brick using a light signal, proceed as follows:
➤ In the navigation bar, under the folder “System Status”, click the term “Overview”.
➤ Right-click a Brick in the main window.
➤ A context menu opens.
➤ Select the option “Toggle Brick Beacon.”
➤ The Brick's light signal illuminates in the configuration interface and on the component itself.
Refresh View
To refresh the main window view, proceed as follows:
➤ Click the “Refresh” button.
Statistics

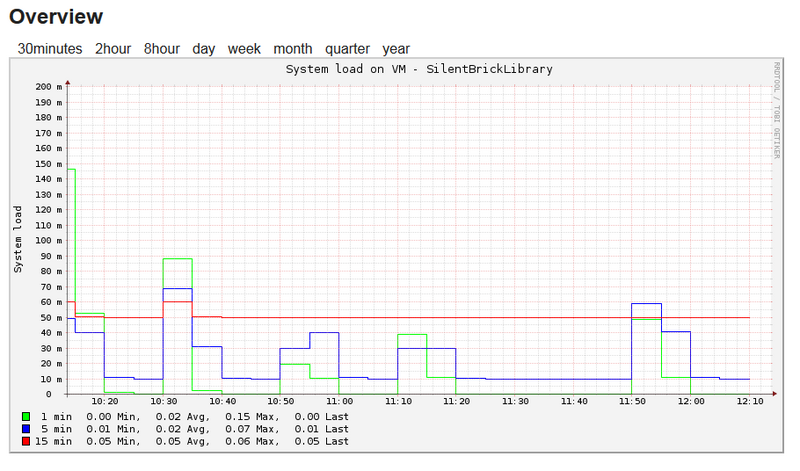

In the “Statistics” section, you will find charts displaying statistical values for the following areas:
System load,
CPU usage,
Memory usage,
Swap usage,
Uptime,
Interface errors.
To adjust the time axis of a chart, proceed as follows:
➤ Click on a chart.
➤ A detailed view of the chart opens.
➤ Select the time span to be displayed.
➤ To return to the chart overview, click on “Overview.”
History
The 'History' section contains information about significant events, such as installations and updates.
Refresh View
To refresh the main window view, proceed as follows:
➤ Click the “Refresh” button.
