The controller of the X series

The device may only be opened by qualified personnel.

The device must be connected to a socket with earth contact.

Ensure easy access to the power outlets.

Caution, risk of electric shock: To disconnect the power supply, all power sources must be disconnected to prevent the risk of electric shock.

Block Image

Caution, risk of electric shock

Block Image

The Silent Brick Controller X series is the base unit. The controller includes the control unit for the Silent Brick System, up to 8 slots (13) for Silent Brick Pro Storage Containers, as well as two power supplies (16) for power supply.

Locking levers (14) are located at the lower corners of the front side of the device. These levers allow the anchoring between the device and the rack rails to be released.

Image 2025-01-30 at 10.19.57-20250130-092000.png

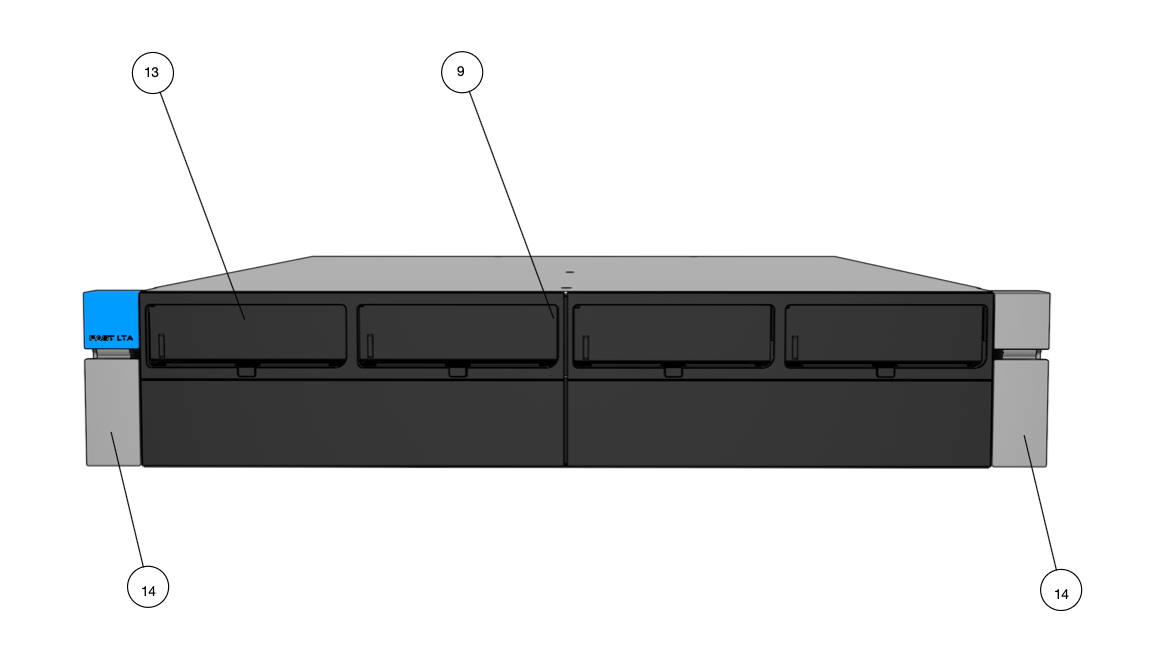

Fig.: Silent Brick Controller X series, front view

No.

Designation

9

Operating status indicator for Silent Brick slot

13

Slots for Silent Bricks

14

Locking lever

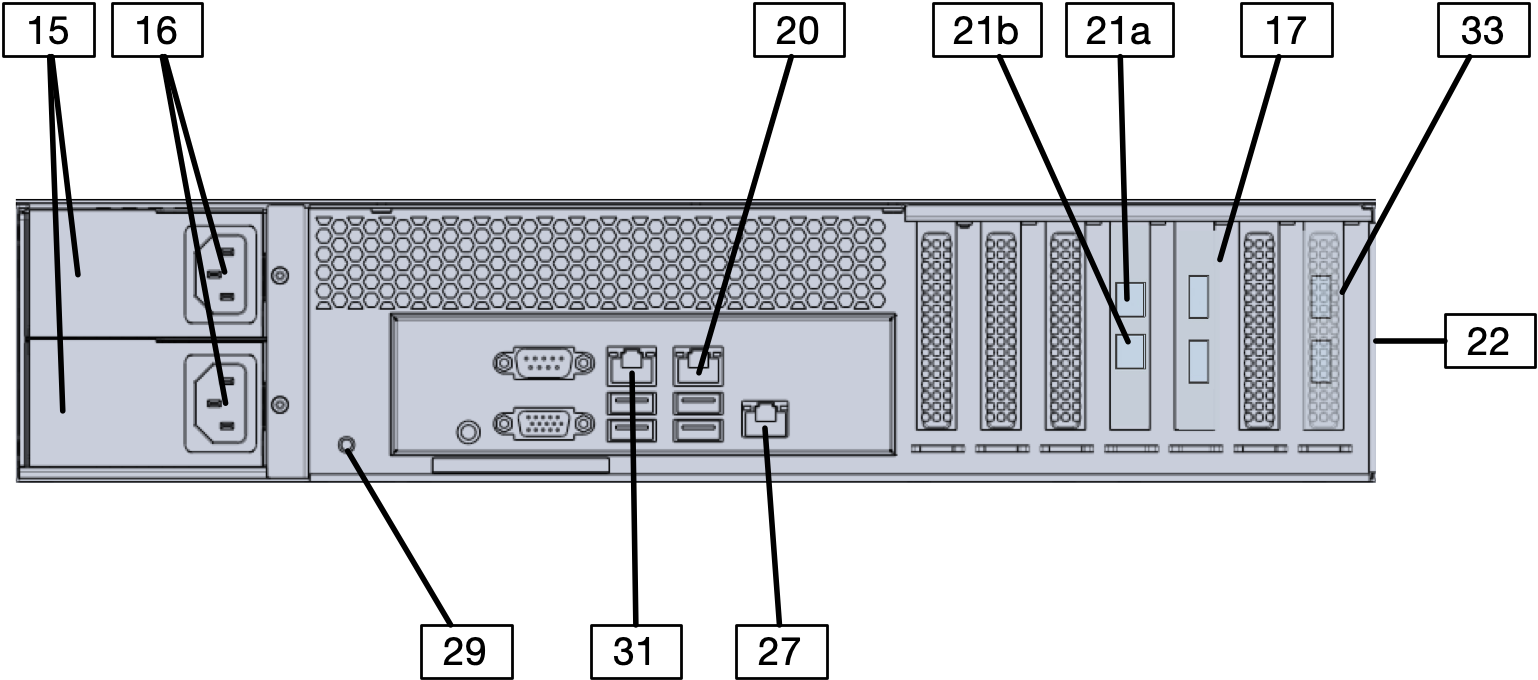

No.

Designation

16

Power Supply

17

SAS Ports for Expansion Connection (SFF-8644)

20

Management port (1 Gbit Ethernet RJ45)

21a

Data port Data1

21b

Data port Data2

22

Rack rails

27

IPMI Port (1GB Ethernet RJ45, independent web interface for hardware monitoring)

29

Power

31

Last Resort Interface

33

Optional Fibre Channel port (2x 32 Gbit)
