Install rack rails
Disassemble rack rails
The rack rails must first be disassembled into two parts. To do this, proceed as follows:
-
➤ Pull the inner rail out of the outer rail until the release lever (32) is visible.
Fig.: Pulling out inner rack rails
-
➤ Operate the release lever (32).
-
➤ Pull the inner rail completely out of the outer rail.
Mount inner rack rails to the Drive
To mount the inner rack rails to the Drive, proceed as follows:
-

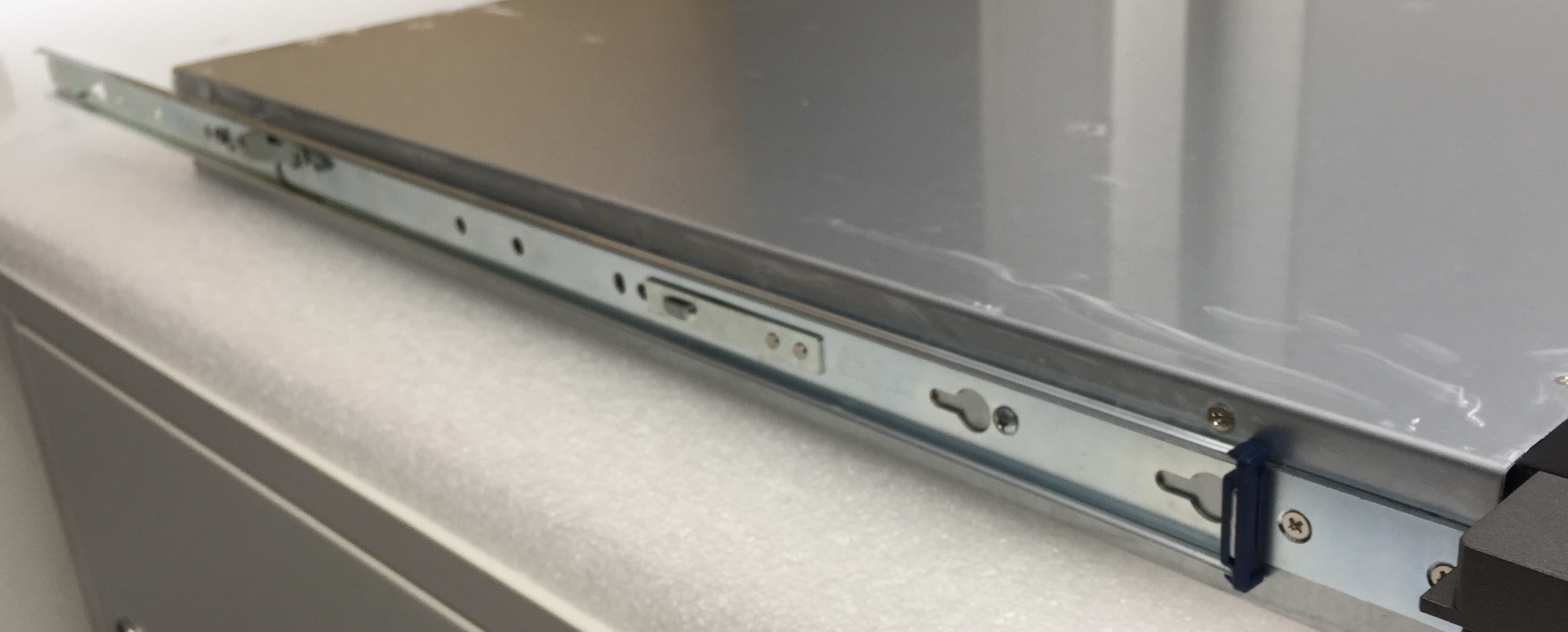

➤ Position the inner rack rail onto the side housing of the drives so that the screw holes align with the rail.
-
➤ Secure the rails on both sides with one of the included M4×4 screws to the housing.
Mounting outer rack rails in the rack
-
➤ To mount the outer rack rails in the rack, proceed as follows:
-
➤ Slide the safety mechanism (33) of the rail back.
-
➤ Hook the rail into the rack.
Fig.: Safety mechanism
-
➤ Release the safety mechanism.
-
➤ Ensure that the rectangular locking pins are correctly anchored in the rack holes.
Fig.: Locking pin
-
➤ Screw the rack rail to the front side of the rack with the locking pin.
Fig.: Locking pin
-
➤ Screw the rack rail to the back side of the rack with the locking screw.
Fig.: Locking screw
Insert controller/shelf into rack
To insert a controller/a shelf into a rack, proceed as follows:
-
➤ Pull the outer rack rails as far out of the rack as possible.

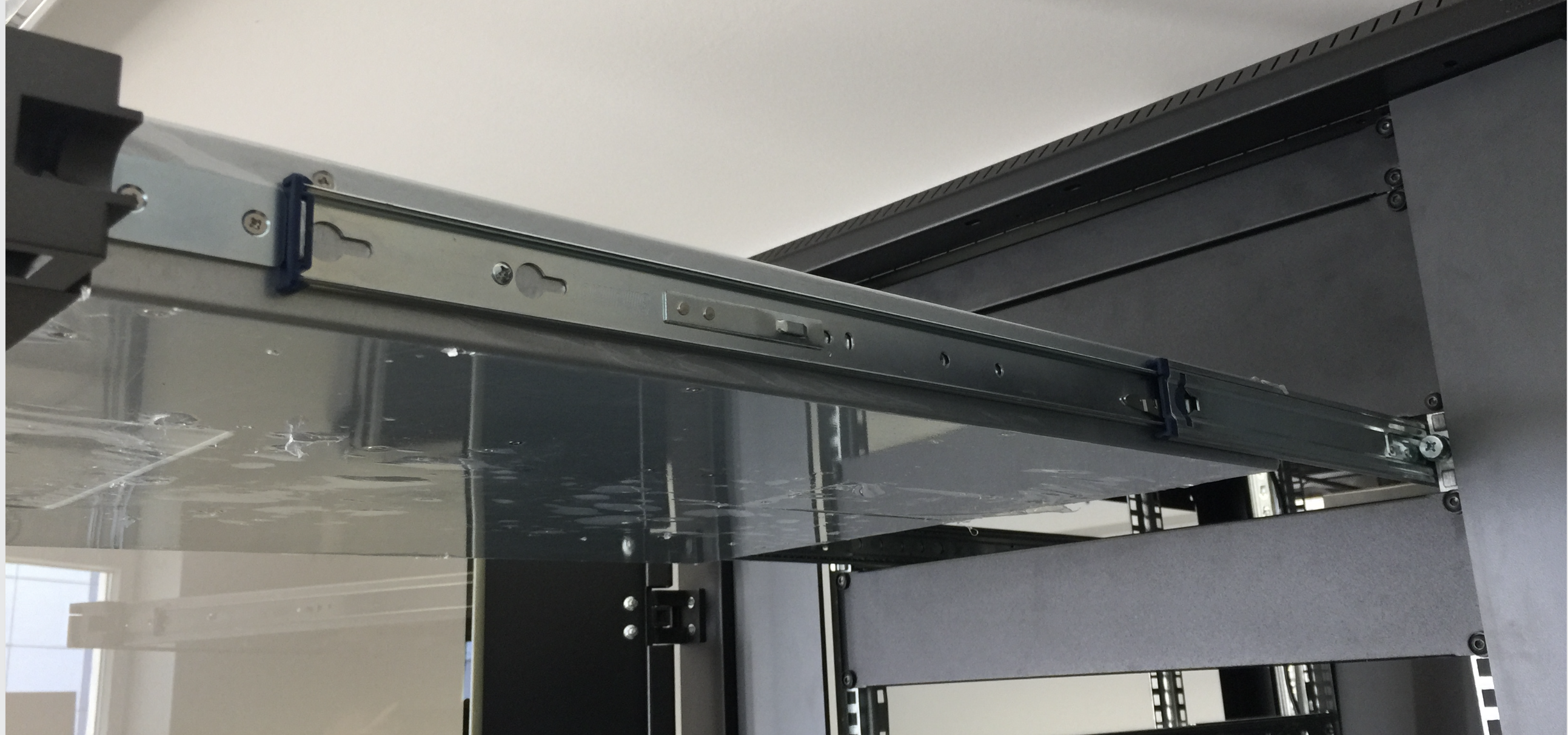

Fig.: Pulling out rack rails
-
➤ Hang the device in such a way that the inner rack rails slide into the outer rack rails.
-
➤ Slide the device into the rack until it stops.
-
➤ Operate the release lever.
-
➤ Slide the device into the rack until the locking mechanism engages.
