Perform service actions
In the “Services” section, you can perform various service actions.
Perform updates
To perform a file update, proceed as follows:
-

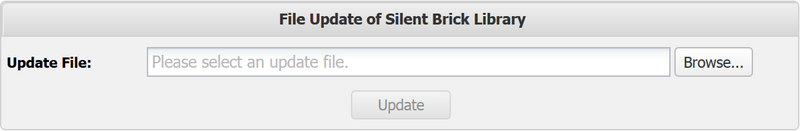

➤ Click the “Browse…” button in the “File Update of Silent Brick Library” section.
-
➤ Select an update file.
-
➤ Click the “Update” button.
Perform reset
-

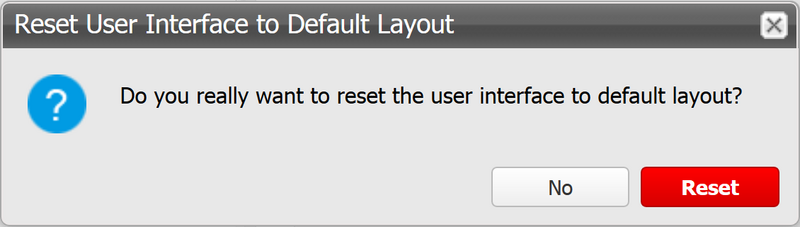

➤ The “Reset User Interface to Default Layout” window will be displayed.
-
➤ To perform the reset, click the “Reset” button.
-
➤ To cancel the operation, click the “No” button.
To perform a factory reset of the settings, proceed as follows:
The factory reset restores the entire system to its factory state. All settings and data may be lost during this process.
-

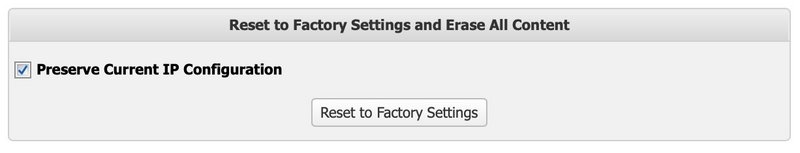

➤ In the section “Reset to Factory Settings and Erase All Content,” select the reset options.
-
➤ If you wish to retain the current IP configuration, check the option “Preserve Current IP Configuration.”
-
➤ Click the “Reset to Factory Settings” button.
-

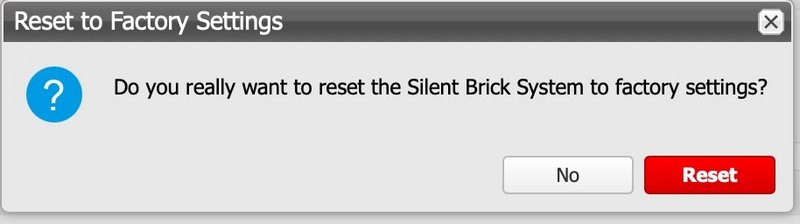

➤ The “Reset to Factory Settings” window will be displayed.
-
➤ To perform the reset, click the “Reset” button.
-
➤ To cancel the operation, click the “No” button.
Restart system
To restart the system, proceed as follows:
-
➤ In the section “Reboot/Shutdown Silent Brick Library,” click the “Reboot Silent Brick Library” button.
-

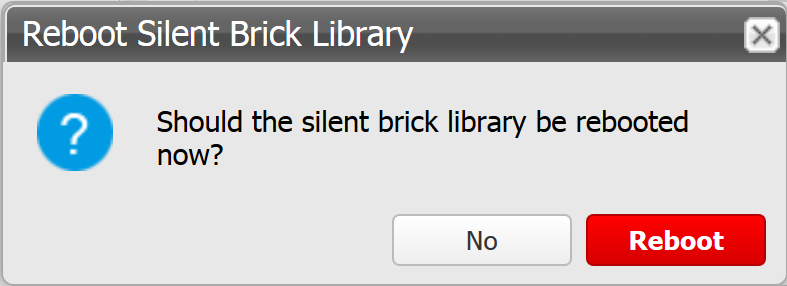

➤ The “Reboot Silent Brick Library” window appears.
-
➤ To restart the system, click the “Reboot” button.
-
➤ To cancel the operation, click the “No” button.
Shut down system
To shut down the system, proceed as follows:
-
➤ In the “Reboot/Shutdown Silent Brick Library” section, click the “Shutdown Silent Brick Library” button.
-
➤ The “Shutdown Silent Brick Library” window appears.
-
➤ To shut down the system, click the “Shutdown” button.
-
➤ To cancel the operation, click the “No” button.
Restart SMB and NFS services
To globally restart the SMB or NFS share services, use the corresponding buttons in the “Restart Share Services” section.
Test network speed
To verify the network connection speed between the Silent Brick Controller and the storage system, you can activate an iPerf3 server.
By enabling the iPerf server, port 5201 is opened for testing purposes. To perform the test, install iPerf3 on the remote system and execute the performance test as follows:
iperf3 -c <DATA-IP DES SILENT BRICK SYSTEMS> -p 5201
Restore Library Configuration

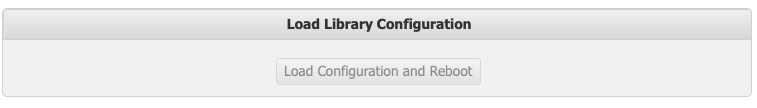

The 'Load Library Configuration' function enables the configuration of virtual tape libraries to be restored on a new Silent Brick controller if required.
A prerequisite for backing up and restoring the configuration is a connected USB stick.
Activation by FAST LTA service is required to use this functionality.
