Silent Brick Controller X-Serie

Number of slots

2 slots for Silent Bricks Pro

Data interface

Dual 10 GB SFP+, included modules: 10 GbE RJ45, 10 GbE Optical, 1 GbE RJ45

Data interface FC

Optional expansion with Fibre Channel 2x32 Gb

Management interface

1x 1 GbE for administration & API, 1x 1 GbE IPMI for hardware monitoring

Interface extension

Serial Attached SCSI (SAS), 2x 12 Gbit/s HD-Mini SAS SFF-8644 for Silent Brick Max

RAM

32 GB (2 x 16 GB DDR4)

CPU

AMD Ryzen 7 5700X / 8-Core, 3.4 GHz, 4.6 GHz boost

Power Consumption

Approx. 177 watts (with 2 Silent Bricks Pro in active use)

Dimensions

Height: 2U (8.9 cm)
Width: 19” (48.2 cm)
Depth: 640 mm

Rail set depth: 620 mm to 820 mm

Weight

Approx. 14 kg (empty), approx. 15 kg (with 2 Silent Brick Pro)

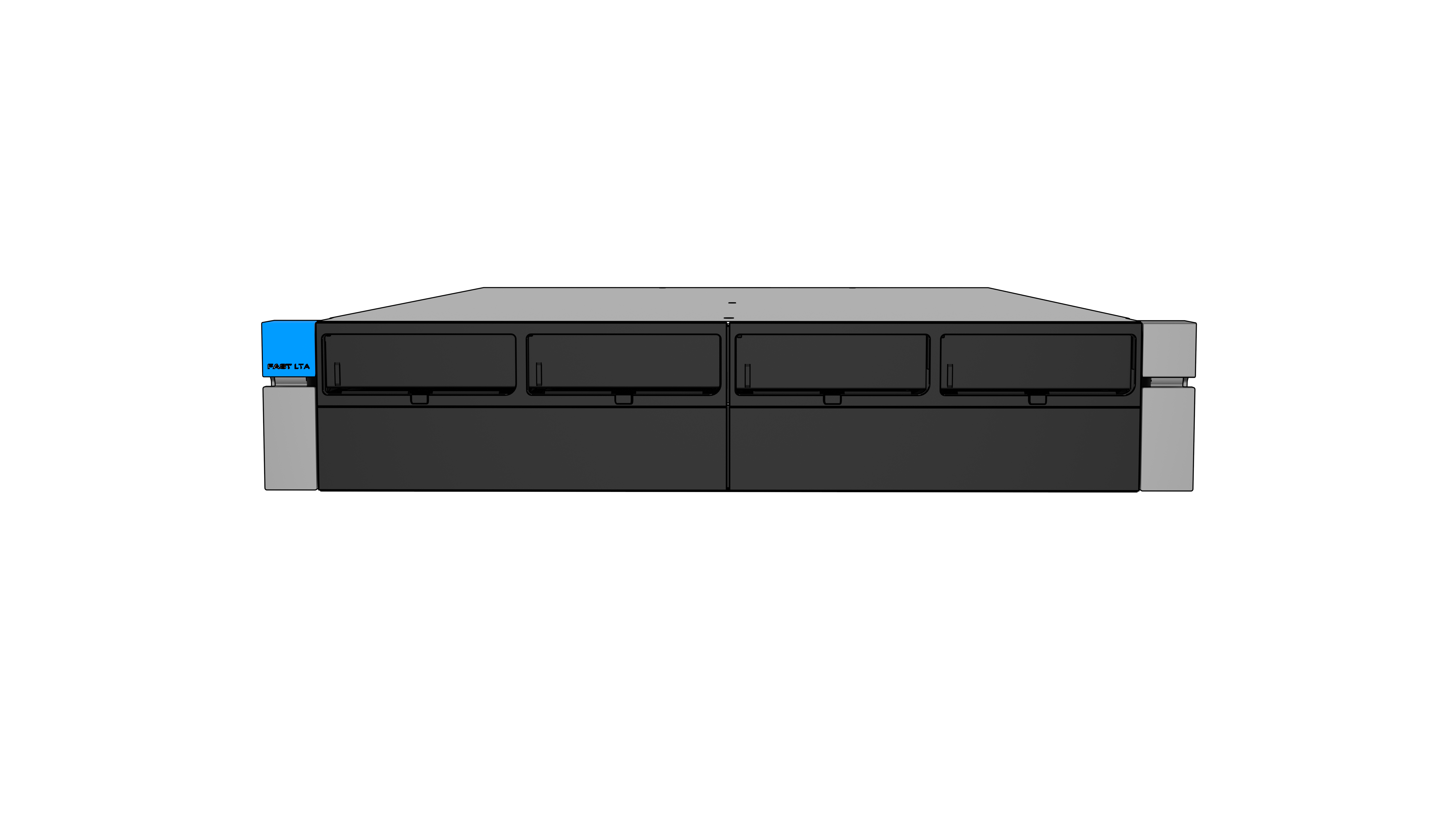

Number of slots

4 slots for Silent Bricks Pro

Data interface

Dual 10 GB SFP+, included modules: 10 GbE RJ45, 10 GbE Optical, 1 GbE RJ45

Data interface FC

Optional expansion with Fibre Channel 2x32 Gb

Management interface

1x 1 GbE for administration & API, 1x 1 GbE IPMI for hardware monitoring

Interface extension

Serial Attached SCSI (SAS), 2x 12 Gbit/s HD-Mini SAS SFF-8644 for Silent Brick Max

RAM

64 GByte (4 × 16 GByte DDR5, 4800 ECC)

CPU

Intel® Xeon Silver 4410T 10 × 2.7 GHz, 4 GHz boost

Power Consumption

Approx. 236 watts (with 2 Silent Bricks Pro in active use)

Dimensions

Height: 2U (8.9 cm)
Width: 19” (48.2 cm)
Depth: 640 mm

Rail set depth: 620 mm to 820 mm

Weight

Approx. 14 kg (empty), approx. 15 kg (with 2 Silent Brick Pro)

Number of slots

8 slots for Silent Bricks Pro

Data interface

Dual 100GbE QSFP+, included modules: 10/25GbE (RJ45), 10GbE SFP+, 100GbE (MTP/MPO)

Data interface FC

Optional expansion with Fibre Channel 2x32 Gb

Management interface

1x 1 GbE for administration & API, 1x 1 GbE IPMI for hardware monitoring

Interface extension

Serial Attached SCSI (SAS), 2x 12 Gbit/s HD-Mini SAS SFF-8644 for Silent Brick Max

RAM

128 GByte (8 x 16 GByte DDR5, 4800 ECC)

CPU

Intel® Xeon Silver 4410T 10 × 2.7 GHz, 4 GHz boost

Power Consumption

Approx. 630 watts (with 8 Silent Bricks Pro in active use)

Dimensions

Height: 2U (8.9 cm)
Width: 19” (48.2 cm)
Depth: 640 mm

Rail set depth: 620 mm to 820 mm

Weight

Approx. 14 kg (empty), approx. 15 kg (with 2 Silent Brick Pro)

Number of slots

Depending on the variant:

• X7000: 0 slots for Silent Bricks Pro

• X7020: 2 slots for Silent Bricks Pro

• X7040: 4 slots for Silent Bricks Pro

• X7060: 6 slots for Silent Bricks Pro

• X7080: 8 slots for Silent Bricks Pro

Data interface

Depending on the variant:

• 10Gbit variant: 10GbE RJ45, 10GbE Optical

• 100Gbit variant: 10GbE RJ45, 10GbE Optical, 25GbE Optical, 100GbE MTP/MPO

Data interface FC

Optional expansion with Fibre Channel 2x32 Gb

Management interface

1x 1 GbE for administration & API, 1x 1 GbE IPMI for hardware monitoring

Interface extension

Serial Attached SCSI (SAS), 2x 12 Gbit/s HD-Mini SAS SFF-8644 for Silent Brick Max

RAM

128 GByte (8 x 16 GByte DDR5, 4800 ECC)

CPU

Intel® Xeon Silver 4410T 10 × 2.7 GHz, 4 GHz boost

Power Consumption

Approx. 630 watts (with 8 Silent Bricks Pro in active use)

Dimensions

Height: 2U (8.9 cm)
Width: 19” (48.2 cm)
Depth: 640 mm

Rail set depth: 620 mm to 820 mm

Weight

Approx. 14 kg (empty), approx. 15 kg (with 2 Silent Brick Pro)
