Compatibility Overview
|
Device |
Compatibility |
|---|---|
|
Silent Brick Single Drive |
❎ |
|
Silent Brick Drive |
❎ |
|
Silent Brick Drive Plus |
❎ |
|
Silent Brick Controller |
✅ |
|
Silent Brick Controller Pro |
✅ |
The device may only be opened by qualified personnel.
The device must be connected to a socket with Earth contact.
Ensure easy access to the sockets.
Caution, Risk of Electric Shock: To isolate the power supply, all power sources must be disconnected to prevent the risk of electric shock.
Caution, Risk of Electric Shock
The Silent Brick Max is a non-portable Silent Brick in the form factor of a 19" rack with one height unit. The Silent Brick Max also contains twelve hard drives, but in the 3.5-inch form factor. Due to the larger hard drives, the Silent Brick Max offers significantly more capacity than a single Silent Brick.
The Silent Brick Max behaves like a Silent Brick but can only be operated via the Silent Brick Controller. The connection is established via SAS.
Mixed operation of Silent Bricks and Silent Brick Max units within a single system is possible, but not within an SNAS or SNAS ERC volume.

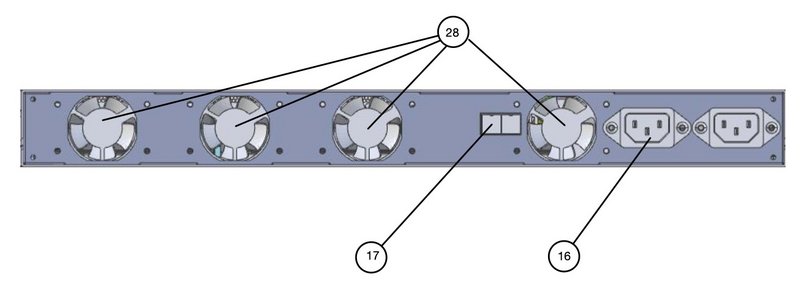

Fig.: Silent Brick Max Air rear side
|
No. |
Designation |
|
16 |
Power supply |
|
17 |
SAS Connectors (SFF-8644) |
|
28 |
Fan |
