The device may only be opened by qualified personnel.
The device must be connected to a socket with Earth contact.
Ensure easy access to the sockets.
Caution, Risk of Electric Shock: To isolate the power supply, all power sources must be disconnected to prevent the risk of electric shock.
Caution, Risk of Electric Shock
The Single Drive is the smallest Silent Brick system. It includes a control unit for the Silent Brick Library, one slot (13) for Silent Brick Storage Containers, and two power supplies (16) for energy supply; it cannot be expanded with Shelf.
There are three light-emitting diodes (10) on the front of the device. These indicate the device status as follows:
-
Green: The system is active.
-
Yellow: The system is in standby mode.
-
Red: The system has detected an error (This LED illuminates in addition to the operating status).
Fig.: Drive Front Side
|
No. |
Designation |
|
10 |
Operating Status Indicator |
|
13 |
Slot for Silent Bricks |

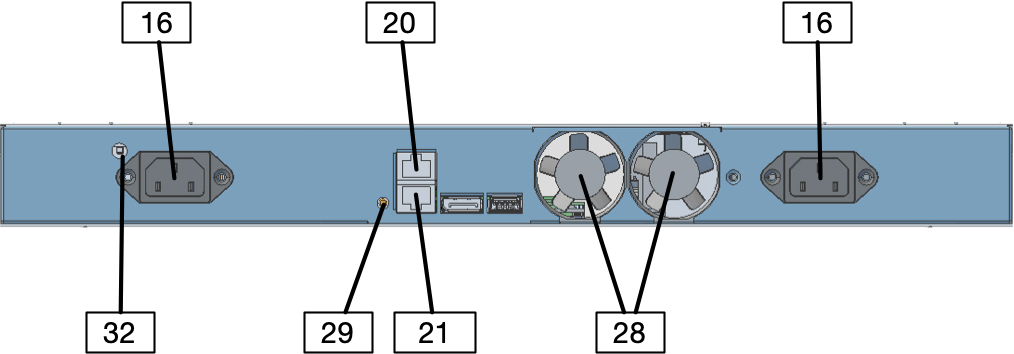

Fig.: Single Drive rear side
|
No. |
Designation |
|
16 |
Power supply |
|
20 |
Management port Mgmt1
|
|
21 |
Data port Data1
|
|
28 |
Fan |
|
29 |
Power |
|
32 |
Emergency Release for Slots for Silent Bricks |
