The device may only be opened by qualified personnel.
The device must be connected to a socket with Earth contact.
Ensure easy access to the sockets.
Caution, Risk of Electric Shock: To isolate the power supply, all power sources must be disconnected to prevent the risk of electric shock.
Caution, Risk of Electric Shock

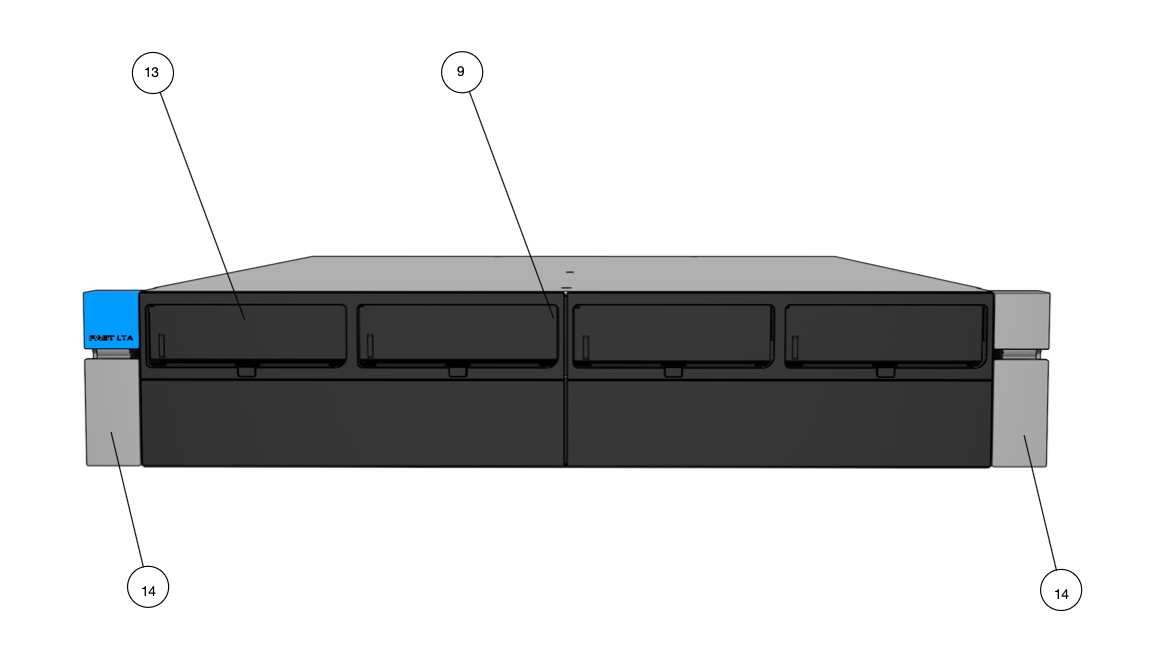

The Silent Brick Controller X-Series is the base unit. The controller includes the Control Unit for the Silent Brick System, up to 8 slots (13) for Silent Brick Pro Storage Containers, and two power supplies (16) for power.
At the lower corners of the device's front side are the locking levers (14). These levers allow the anchoring between the device and the rack rails to be released.
|
No. |
Designation |
|
9 |
Operating Status Indicator for Silent Brick Slot |
|
13 |
Slots for Silent Bricks |
|
14 |
Locking lever |
|

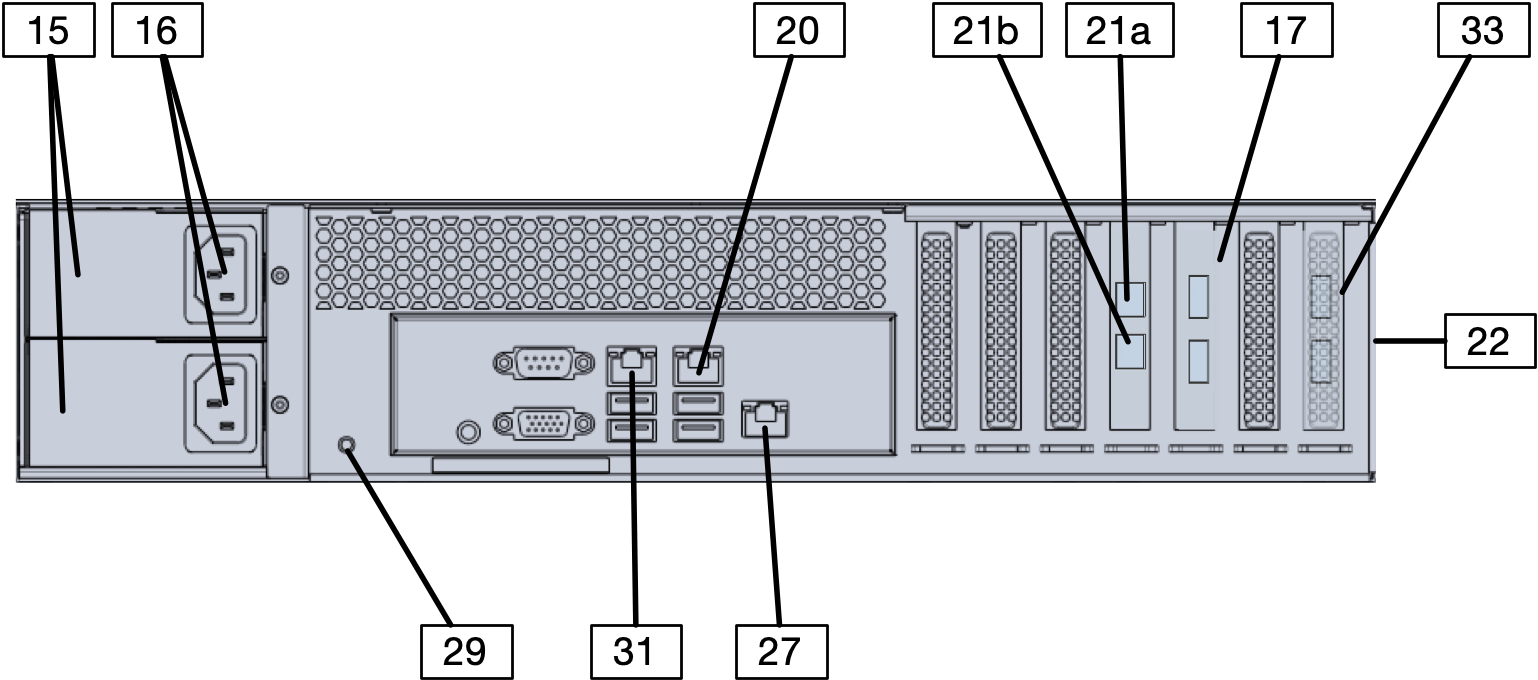

No. |
Designation |
|
15 |
Power supply |
|
16 |
C13 Power Connector |
|
17 |
SAS connectors for expansion connections (SFF-8644) |
|
20 |
Management Port (1 Gbit Ethernet RJ45) |
|
21a |
Data Port Data1 |
|
21b |
Data Port Data2 |
|
22 |
Rack rails |
|
27 |
IPMI Port (1 GB Ethernet RJ45, independent web interface for hardware monitoring) |
|
29 |
Power |
|
31 |
Last Resort Interface |
|
33 |
Optional Fibre Channel Port (2x 32 Gbit) |
