If your Silent Brick System consists of the Controller and Silent Brick Max, you must first perform the following steps:
-
➤ Establish an SAS connection between the Silent Brick Controller Pro and Silent Brick Max.
-

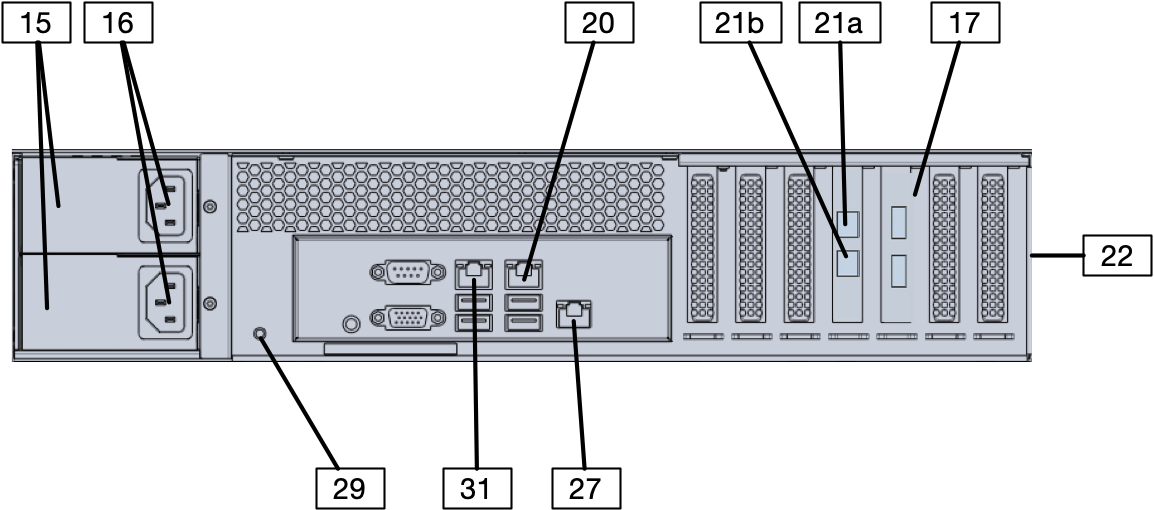

➤ Use the SAS connectors (17) for this.
When connecting multiple Silent Brick Max units, the SAS Switch 16+1 may need to be used. Also connect it to the SAS connectors (17), and then to the Silent Brick Max media.
-
➤ Connect the device to the management network (optional).
-
➤ Use the management connector (20) for this.
-
-
➤ Connect the IPMI port to the management network.
-
➤ Use the IPMI connector (27) for this purpose.
-
-
➤ Connect the device to the data/management network.
-
➤ Use the data ports (21) for this purpose.
-
-
➤ Connect the device to the power supply network.
-
➤ Use the connectors on the power supplies (16) for this purpose. If possible, connect each power supply to a separate electrical circuit.
A detailed description of all connectors can be found in the documentation of the Silent Brick Pro Controller.
