Disassembling the Rack Rail

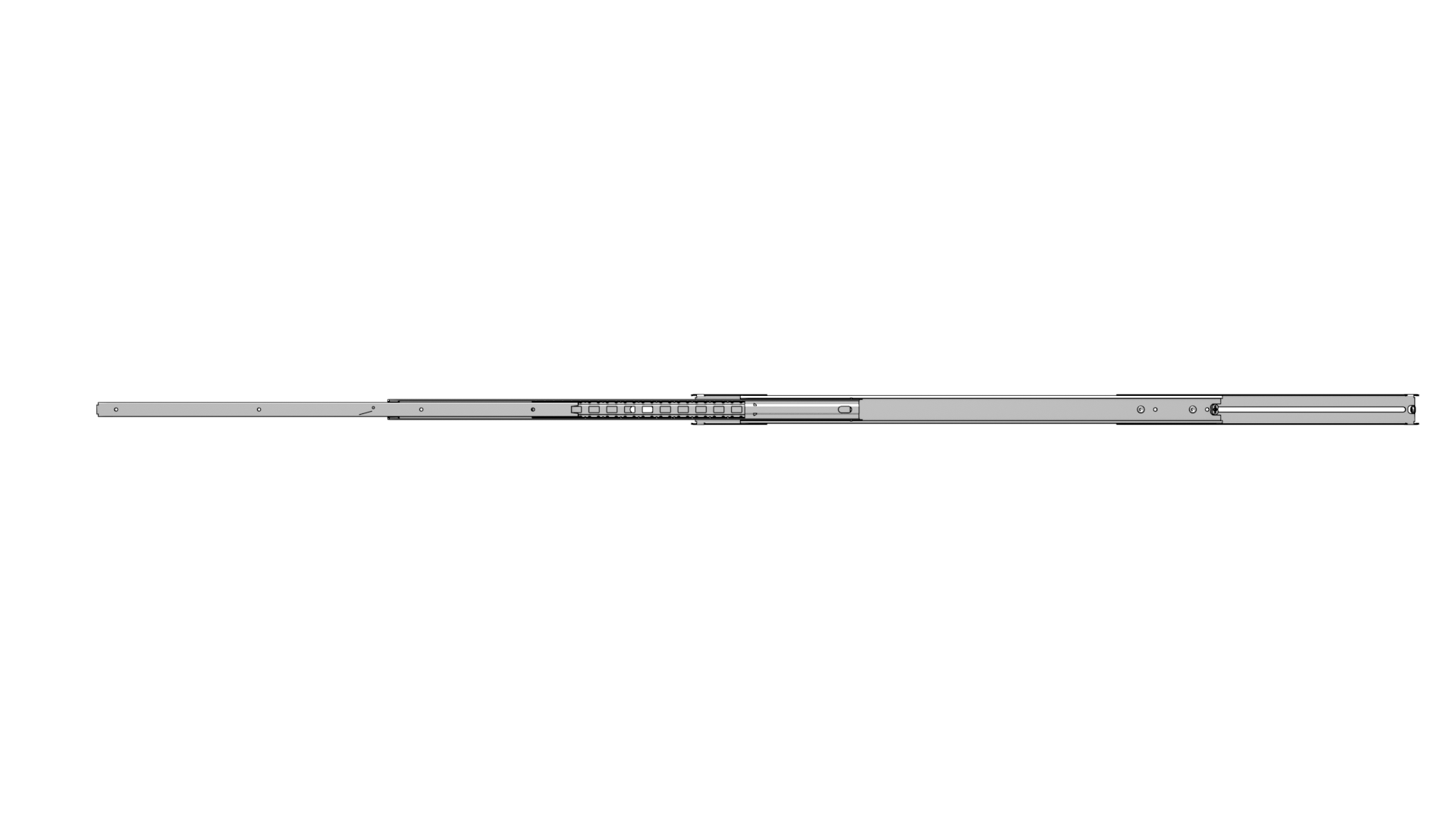

The rack rails must first be disassembled into two parts. Proceed as follows:
-

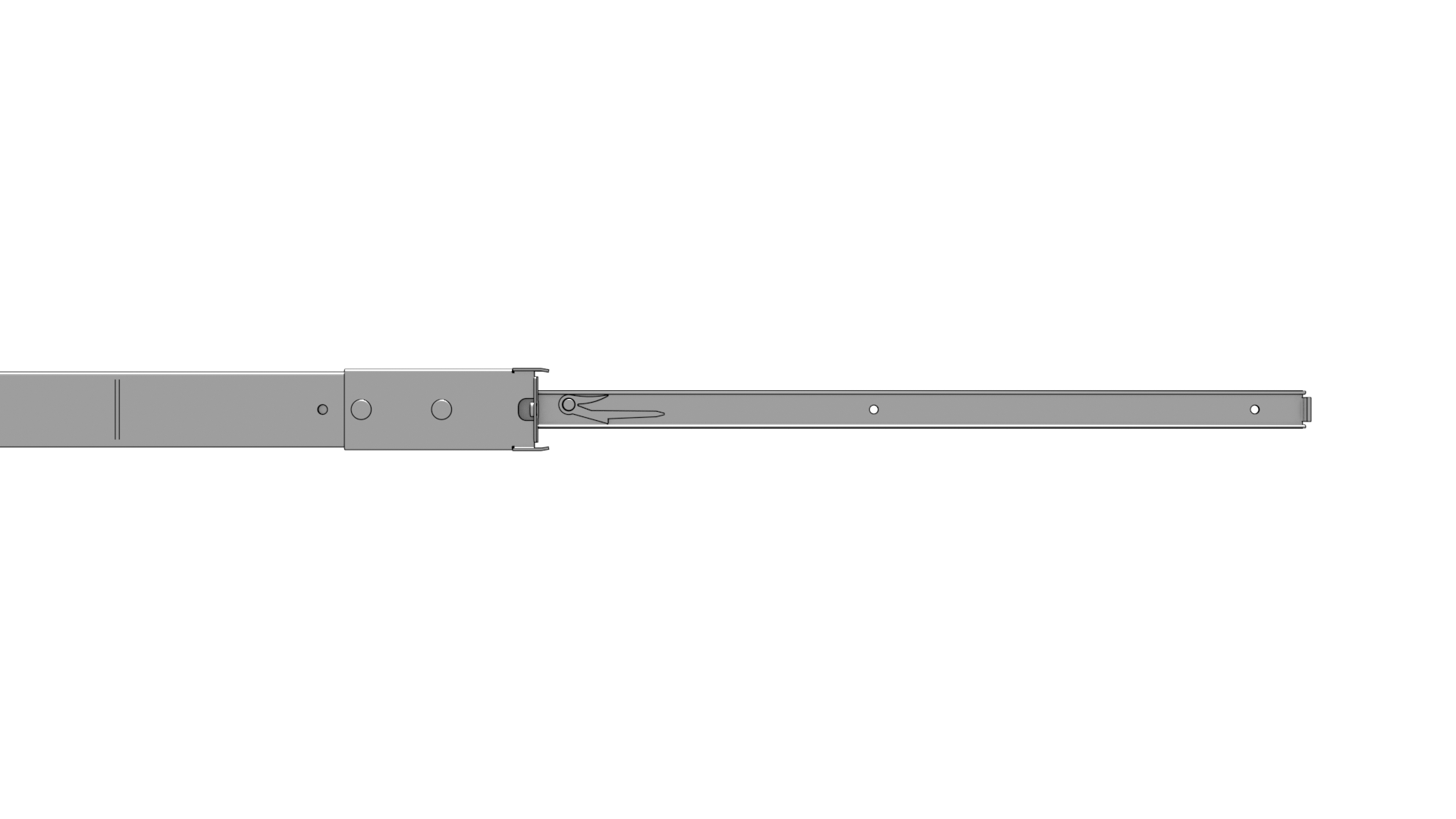

➤ Pull the inner rail out of the outer rail until the release lever becomes visible.
-
➤ Operate the release lever to remove the inner rail from the rail set.
Mount the inner rack rail on the controller
-
➤ Mount the inner rail on both sides of the Silent Brick Controller Pro using the enclosed screws.
Mount the outer rack rail in the rack
-
➤ Mount the outer rails in the rack using the enclosed screws.
-
➤ Please note that the locking pins at the front of the rack must be used. These serve to lock the Silent Brick Controller Pro in the rack.

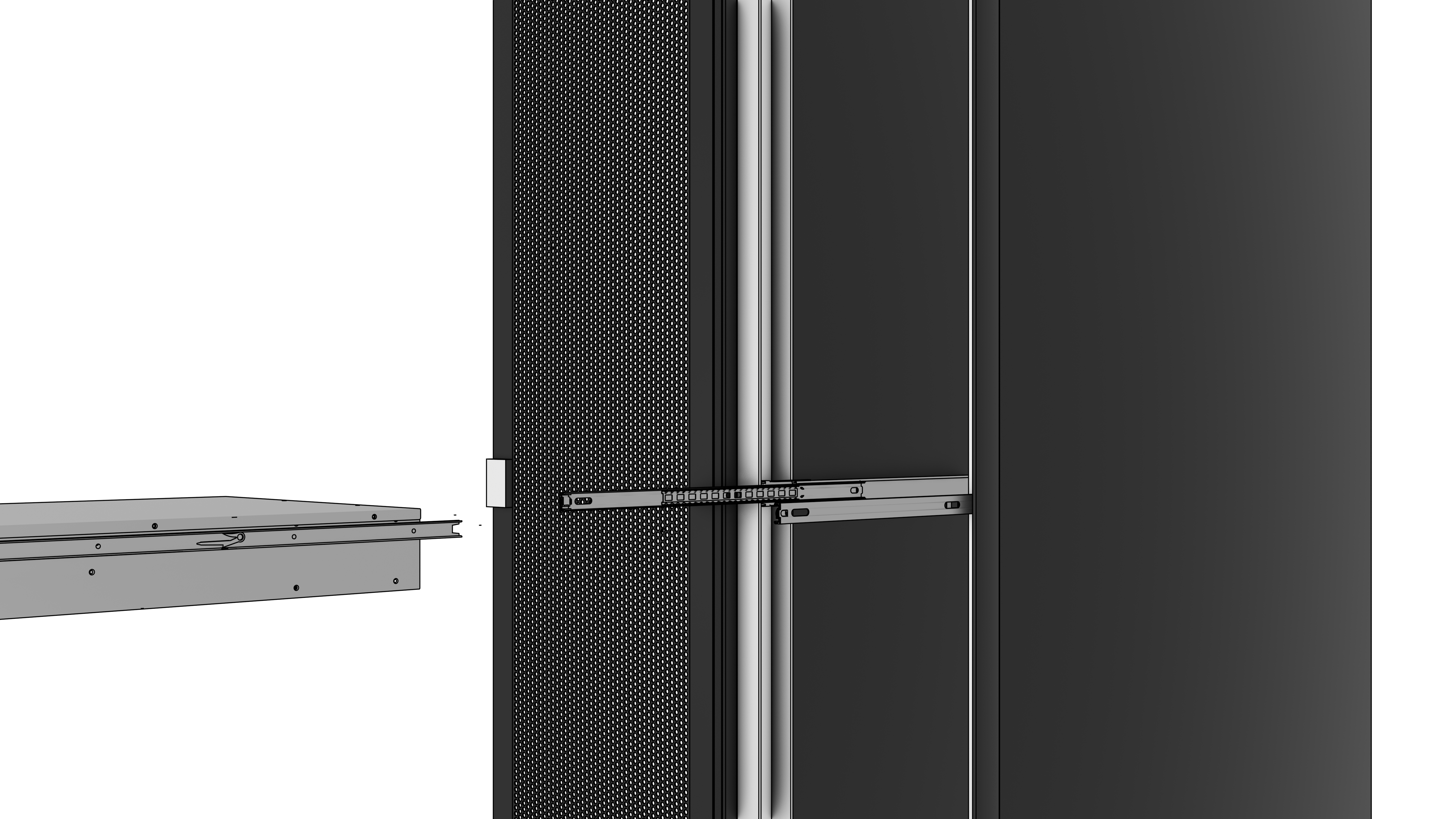

Insert the controller
-
➤ Now slide the controller with the side-mounted rails into the inner rail.
-
➤ After fully inserting the controller, both the guide rails and the controller’s locking mechanism engage with the locking pin.
